Removing Front Carrier

  1. Unscrew fastening screw -1-  .
  2. Unscrew fastening screws -2-  and remove carrier -3-  .

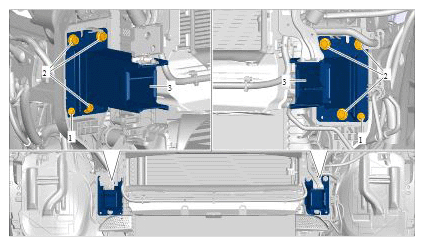

G11984443

Front carrier
