Removing Front Retaining Strip

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .

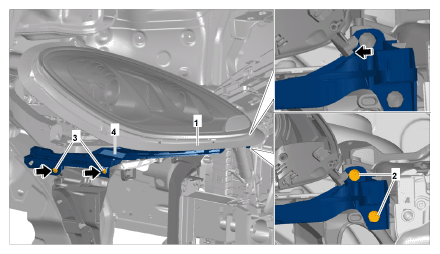

  1. Lift up rubber headlight seal -1-  at the front.
  2. Unscrew fastening screws -2, 3-  .
  3. Lift front headlight up slightly, carefully guide out retaining strip -4-  close to the headlight -arrow-  and remove it.
G11984442

Right retaining strip at the front
