Removing Skid Plate

  1. Remove fastening clamps -arrows-  .
  2. Unclip skid plate -2-  on the front apron -3-  .
  3. Guide out tabs -1-  on the front apron -3-  and remove skid plate -2-  .

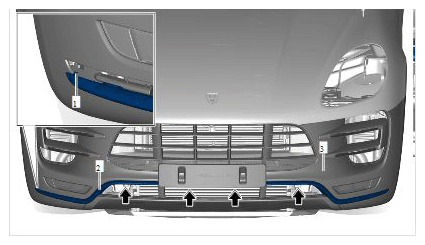

G11984441

Skid plate
