Disassembling And Assembling

1. Remove number plate cover. → 668319 REMOVING AND INSTALLING NUMBER PLATE COVER
2. Remove front wire harness -6-  . → 971519 REMOVING AND INSTALLING FRONT WIRE HARNESS
3. Remove fog lights -5-  . → 946419 REMOVING AND INSTALLING FOG LIGHTS
4. Remove front air grille -2-  . → 660419 REMOVING AND INSTALLING FRONT AIR GRILLE
5. Remove auxiliary headlights -3-  . → 947119 REMOVING AND INSTALLING AUXILIARY HEADLIGHTS
6. Remove ParkAssist sensors -4-  . → 917519 REMOVING AND INSTALLING PARKASSIST SENSOR
7. Remove radiator grille -1-  . → 660519 REMOVING AND INSTALLING RADIATOR GRILLE
8. Remove skid plate. (Only for Turbo vehicles)→ 631619 REMOVING AND INSTALLING SKID PLATE
9. Remove front spoiler -7-  . → 660319 REMOVING AND INSTALLING FRONT SPOILER

Assemble in reverse order.

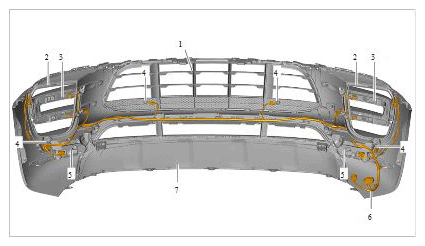

Disassembling and assembling front apron
