Removing Front Bumper
NOTE:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

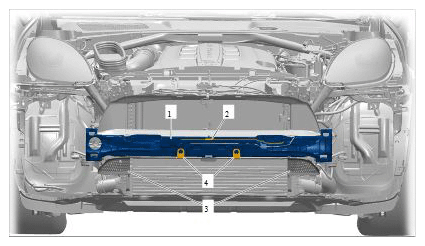

- Guide cables -2- and tabs -4- out of the styrofoam impact absorber -1- .
- Remove styrofoam impact absorber -1- .
- Unclip ventilation guides -3-
and fold them inwards.
Exposing front bumper

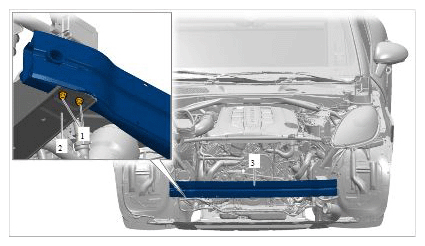

- Unscrew fastening screws -1- , remove bracket -2- with horn and set aside with line connected.
- Remove bumper -3- by pulling it forward.
