Removing Rear Wheel Housing Liner

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Unscrew fastening screws -2-  .
2. Unscrew and remove fastening nuts -1-  .
3. Loosen and remove wheel housing liner -3-  .

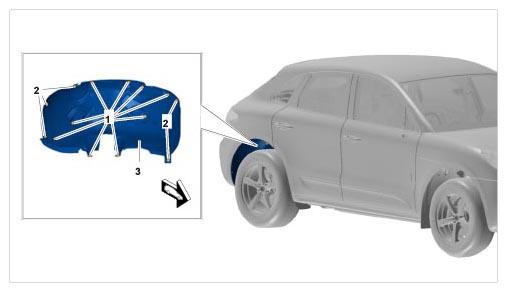

   Fig 1: Rear Right Wheel Housing Liner Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
