Removing Rear Wheel Housing

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

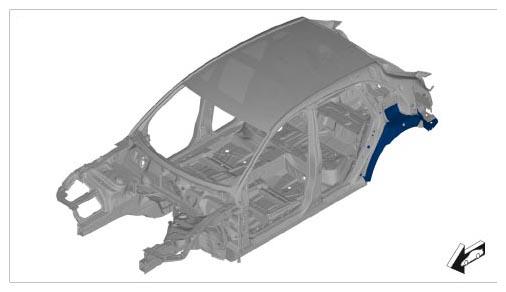

Fig 1: Rear Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure to leave an overlap of approx 20 mm on the wheel housing.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Mark and make the required cut. → Distance: 20 mm
   1. 1.1. Remove rear wheel housing.

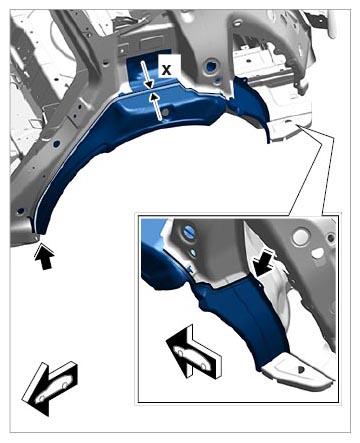

      Fig 2: Removing Rear Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove remaining pieces of rear wheel housing.
   1. 2.1. Drill out spotwelds using spotweld drill;  .

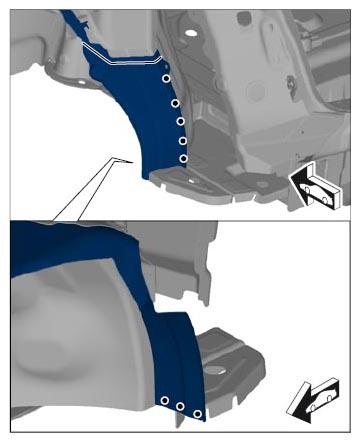

      Fig 3: Removing Rear Wheel Housing Pieces

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
