Preparing Rear Wheel Housing For Installation

Fit in rear wheel housing.

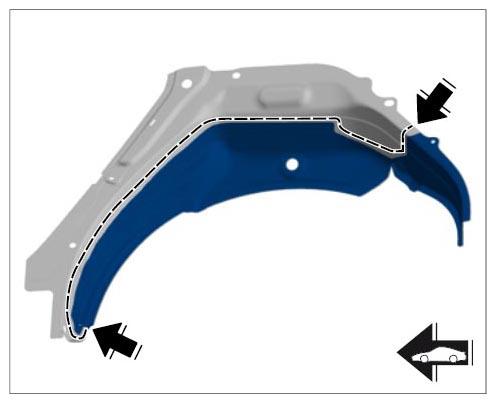

1. 1.1. Cut rear wheel housing at the transitions to the remaining section of the wheel housing leaving an overlap of 20 mm.

  Fig 1: Identifying Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

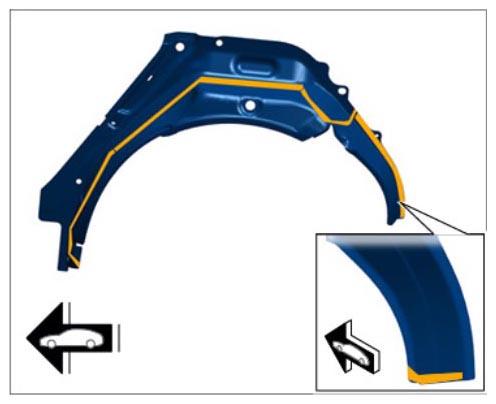

Prepare rear wheel housing for bonding and welding.

Fig 2: Identifying Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Orange Resistance spot-welding + bonding
