Removing D-Pillar Reinforcement

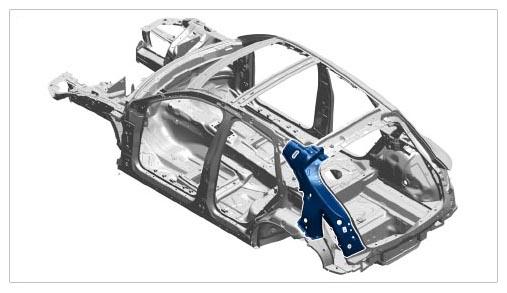

Fig 1: D-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

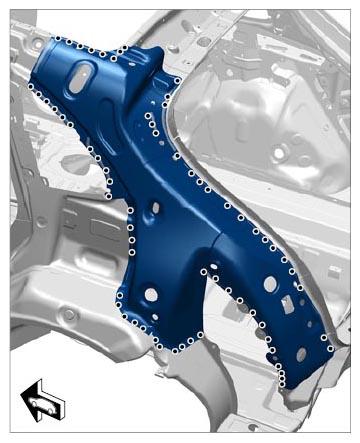

1. Drill out spotwelds using spotweld drill;  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

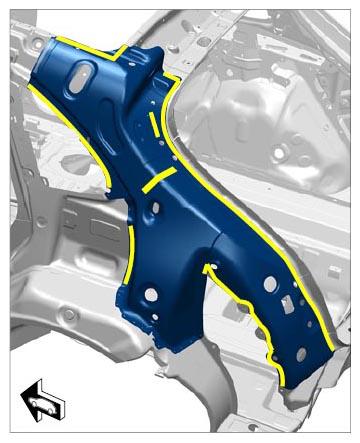

2. Heat the bonding surfaces.
   1. 2.1. Remove D-pillar reinforcement.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
