Preparing Connection Areas Of The Body

  1. Align the sealing surface and connections of the body.
  2. De-burr connection points and prepare them for welding.
  3. Prepare the marked areas for welding and bonding.

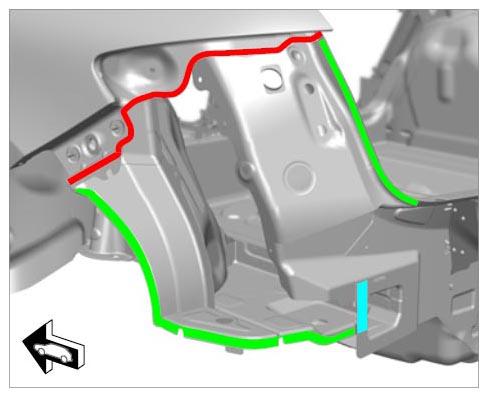

    Fig 1: Identifying Body Connection Areas
    G10030986Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding
    Blue Bonding
    Red Plug-welding/apply a full weld using inert gas without bonding
