Removing Rear Side Section

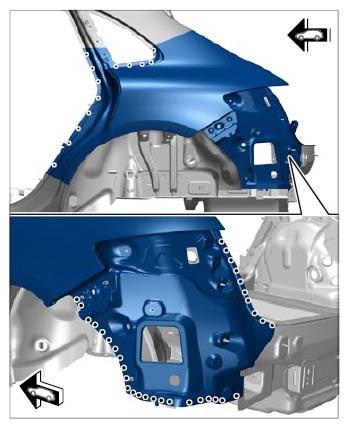

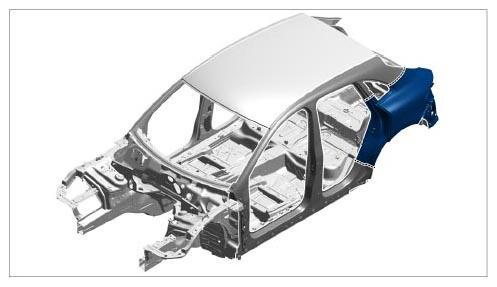

Fig 1: Rear Side Section Installation Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

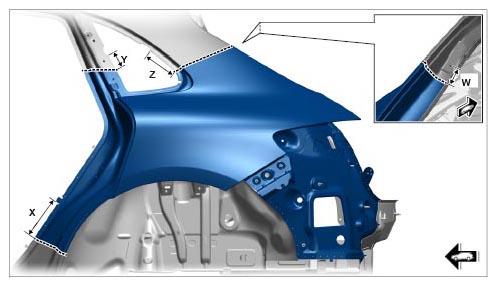

Mark cuts X in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 86 mm → Distance: 60 mm → Distance: 90 mm → Distance: 50 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

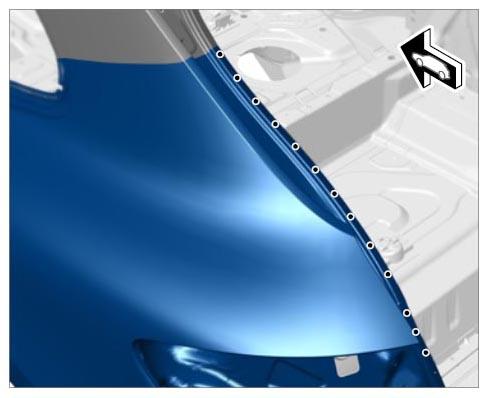

2. Drill out spotwelds using spotweld drill;  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Bend up edge of wheel arch in area -arrows-  .

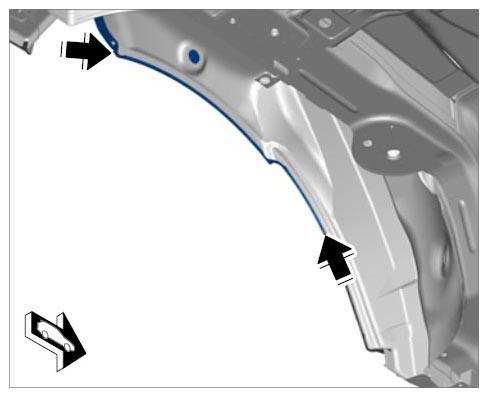

   Fig 2: Locating Wheel Arch Edge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

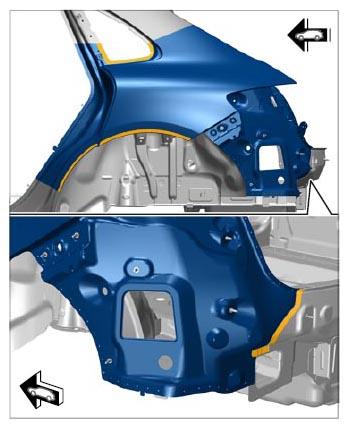

4. Heat the marked bonding surfaces.
   1. 4.1. Remove rear side section.
