Preparing Connection Areas Of The Body

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Align the sealing surface and connections of the body.
2. De-burr connection points and prepare them for welding.
3. Prepare the marked areas for bonding and welding. → Preparing Bonding Surfaces

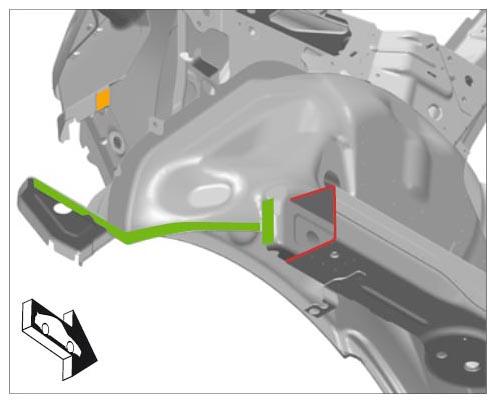

   Fig 1: Identifying Body Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Red	Plug-welding/apply a full weld using inert gas without bonding
   Green	Resistance spot-welding
   Yellow	Bonding + resistance spot-welding
