Removing C-Pillar Reinforcement

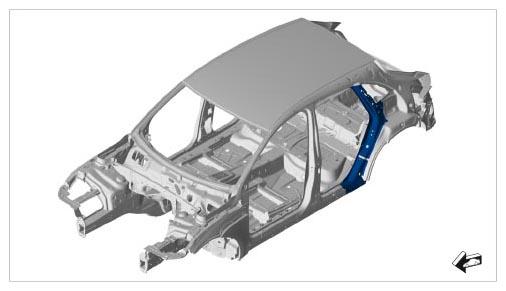

Fig 1: C-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove C-pillar reinforcement.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.

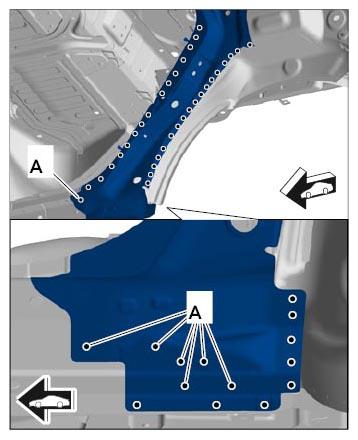

1. 1.1. Drill out spotwelds using spotweld drill; .

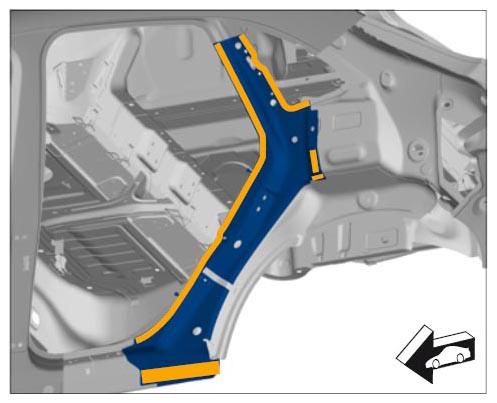

  Fig 2: Removing C-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side panel section -1- .
Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
1. 2.1. Mark and make cuts. → Distance: 100 mm
  Information

  Drill out the connection point on one side only. Do not damage the plate underneath.
2. 2.2. Drill out spotwelds using spotweld drill; .

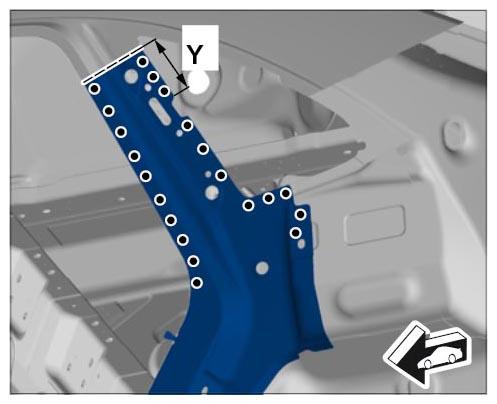

  Fig 3: Identifying Side Panel Section Dimension
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas.
1. 3.1. Remove side panel -1- section.

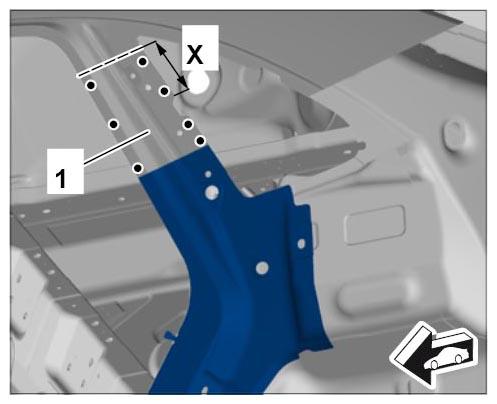

  Fig 4: Removing Side Panel Section
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

  Information

  Mark cut Y in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.
Mark and make cuts. → Distance: 90 mm
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 4.1. Drill out spotwelds using spotweld drill; .

  Fig 5: Identifying C-Pillar Reinforcement Spotwelds Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas.
1. 5.1. Remove C-pillar reinforcement.

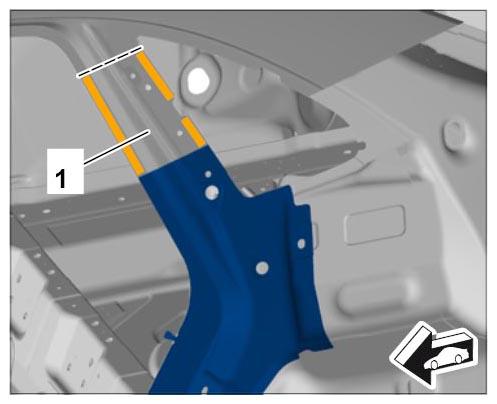

  Fig 6: Removing C-Pillar Reinforcement
