Preparing Connection Areas Of The Body

  1. Align the sealing surface and connections of the body.
  2. De-burr connection points and prepare them for welding.
  3. Prepare the marked areas for welding and bonding.

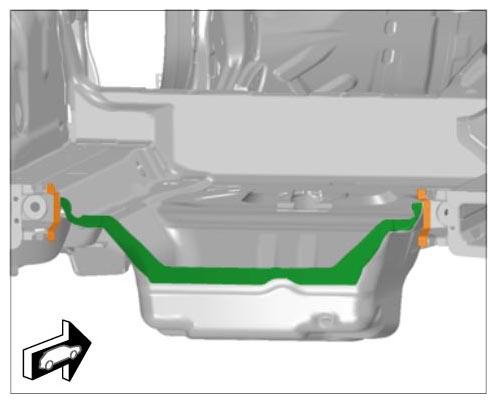

    Fig 1: Identifying Body Connection Areas
    G10030853Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Orange Bonding + resistance spot-welding
    Green Resistance spot-welding
