Installing Inner Side Member

Install inner side member and check that it fits perfectly. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
1. 1.1. Apply adhesive to the marked areas. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE→ Application depth: 3.0 mm

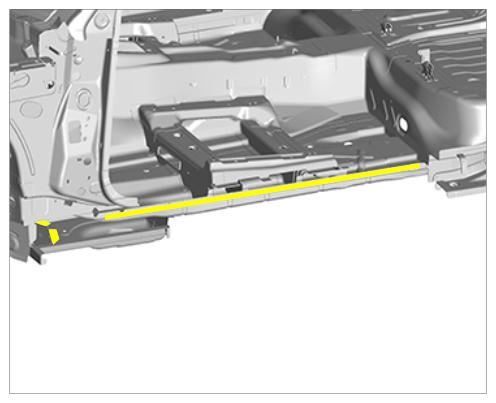

  Fig 1: Identifying Adhesive Applying Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance spot-weld the inner side member.

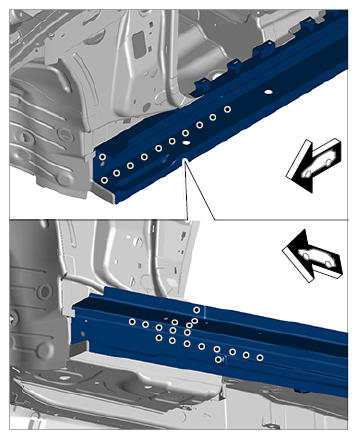

Fig 2: Installing Inner Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

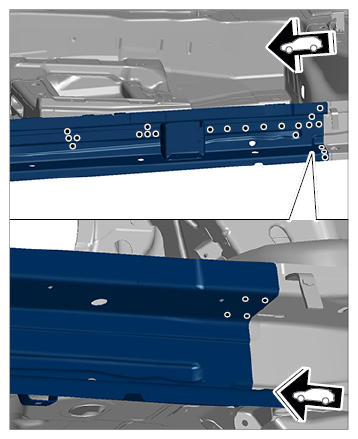

Fig 3: Installing Inner Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

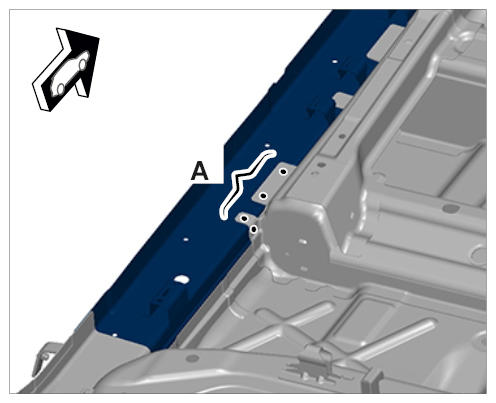

Plug-weld area -A- using inert gas.

Fig 4: Installing Inner Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
