Removing Outer Side Member

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts A, B and C  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

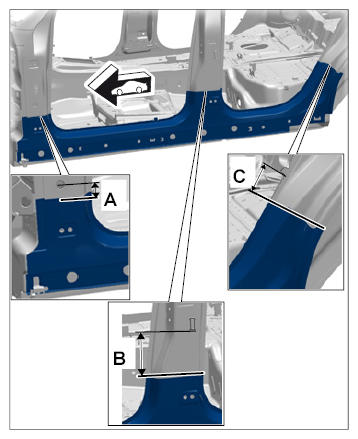

Fig 1: Identifying Outer Side Member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Drill out spotwelds using spotweld drill  .

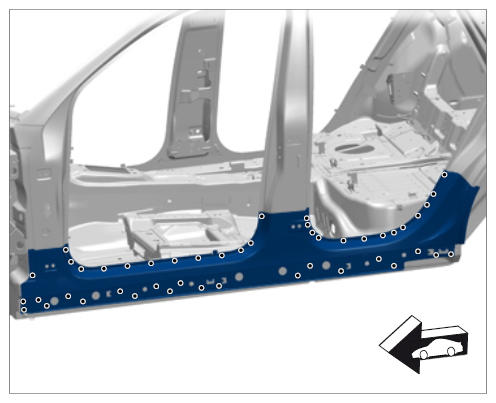

   Fig 2: Identifying Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat bonding areas.
   1. 2.1. Bend up edge of wheel arch -A-  .
   2. 2.2. Remove side member.

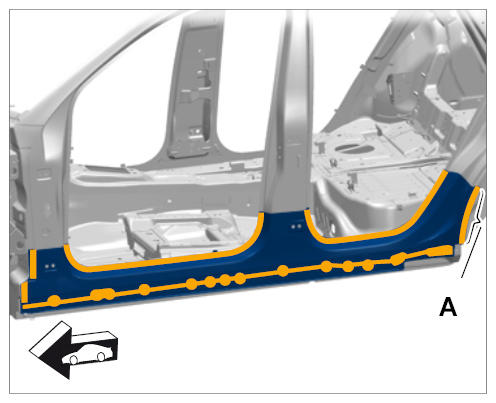

      Fig 3: Identifying Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
