Removing Outer B-Pillar

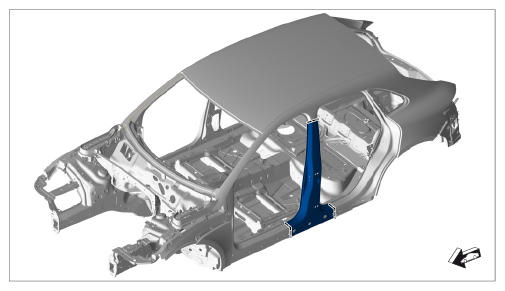

Fig 1: Identifying B-Pillar Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts E, F and G in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts.

   → Distance: 23 mm

   → Distance: 75 mm

   → Distance: 120 mm

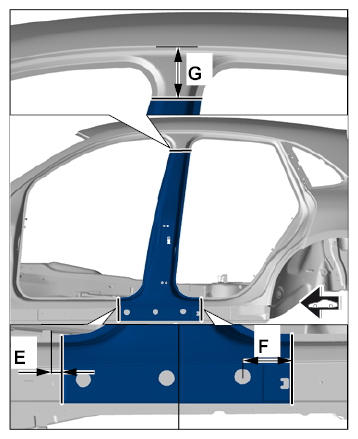

   Fig 2: Identifying B-Pillar Mark Cutting Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill  .

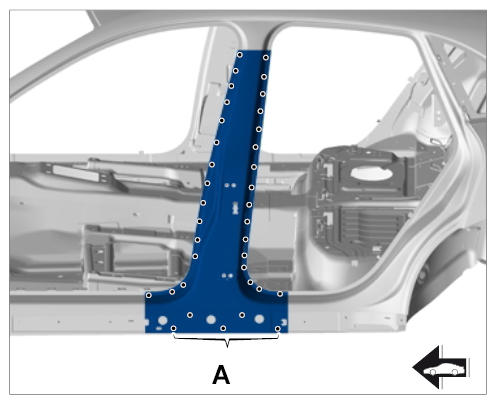

   Fig 3: Identifying B-Pillar Spotwelds Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat bonding areas.
   1. 3.1. Remove B-pillar.

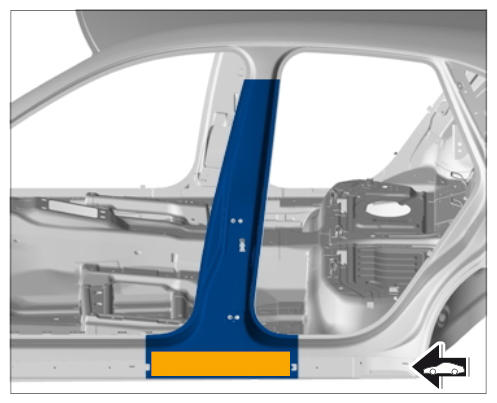

      Fig 4: Removing B-Pillar

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
