Cut Variants

Information

Cuts can be made in the defined areas on the outer B-pillar due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

The diagram should help you to determine the correct position of cuts.

1. E-F-H  - Replace cuts for the B-pillar reinforcement. → 514255 REPLACING B-PILLAR REINFORCEMENT
2. E-F-G  - Replace cuts for the B-pillar. → 514155 REPLACING B-PILLAR

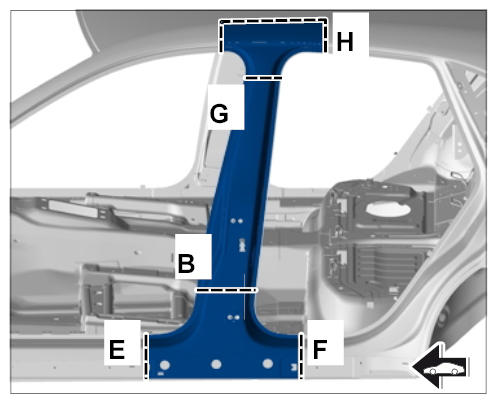

Fig 1: B-Pillar Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
