Removing A-Pillar Reinforcement

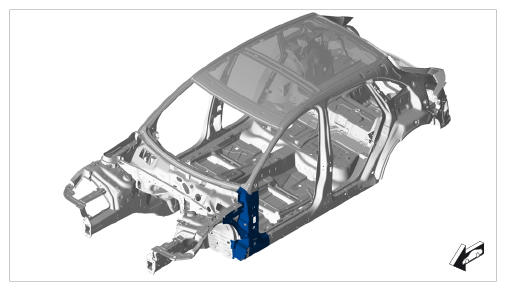

Fig 1: A-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side member closing element.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds using spotweld drill .
2. 1.2. Grind down welded seams -arrows- .

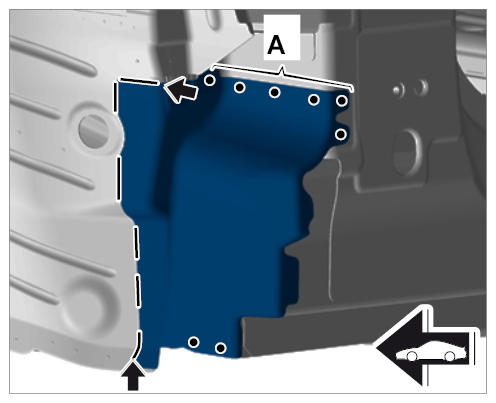

  Fig 2: Identifying Side Member Closing Element
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Mark and make a rough cut -arrows- .
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 2.1. Drill out marked spotwelds using spotweld drill .

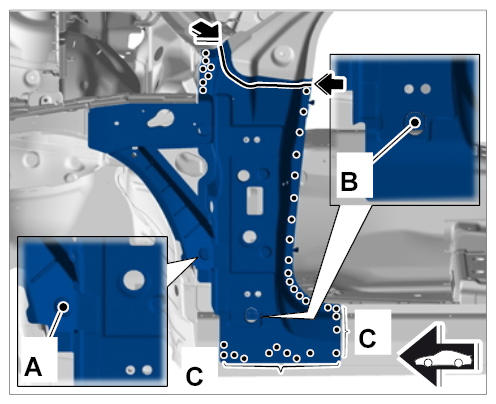

  Fig 3: Identifying A-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out marked spotwelds using spotweld drill .
1. 3.1. Grind down welded seams -arrows- .

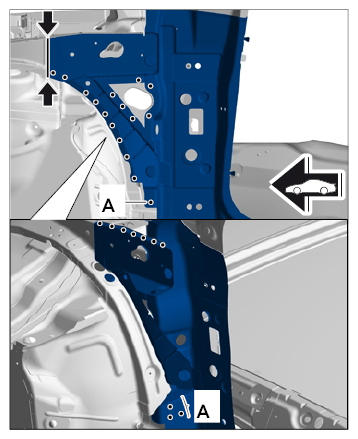

  Fig 4: Identifying A-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas.

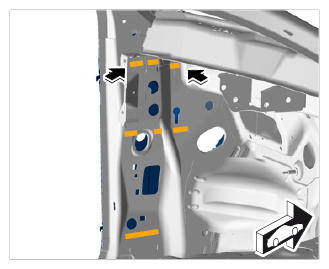

Fig 5: Identifying A-Pillar Reinforcement Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas from inside -arrows- .
1. 5.1. Remove A-pillar reinforcement.

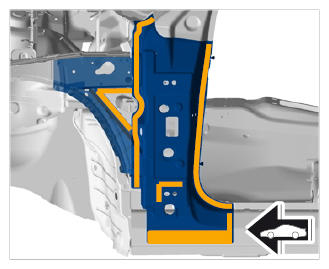

  Fig 6: Locating A-Pillar Reinforcement Bonding Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove remaining piece.
1. 6.1. Drill out spotwelds using spotweld drill .
2. 6.2. Remove remaining piece of A-pillar reinforcement -1- in a downward direction -arrows- .

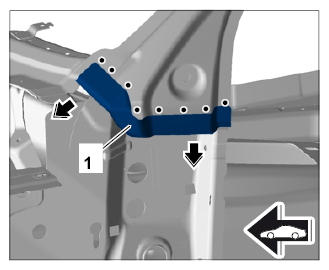

  Fig 7: Identifying A-Pillar Reinforcement Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
