Removing A-Pillar

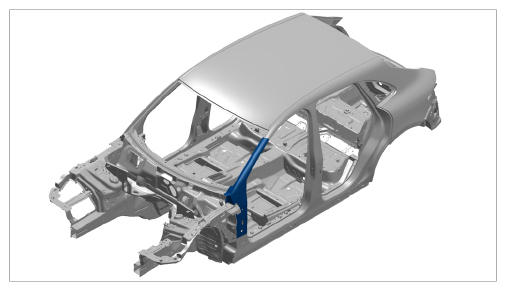

Fig 1: A-Pillar Component Location

G10030680

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove wing bracket.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds -A- using spotweld drill.
2. 1.2. Grind down welded seams -arrows- .

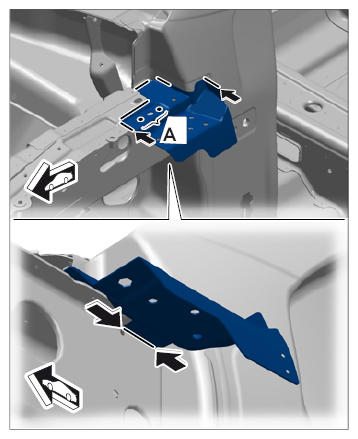

  Fig 2: Identifying Wing Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Mark cuts X & Y in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

  Information

  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Mark and make cuts. → Distance: 70 mm → Distance: 65 mm

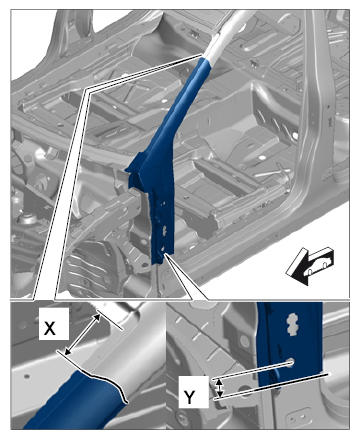

Fig 3: Identifying A-Pillar Mark Cutting Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds using spotweld drill .

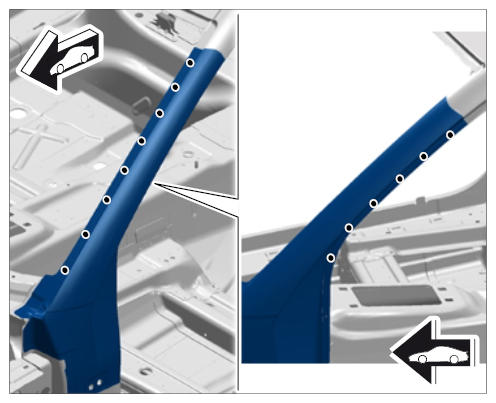

Fig 4: Identifying A-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

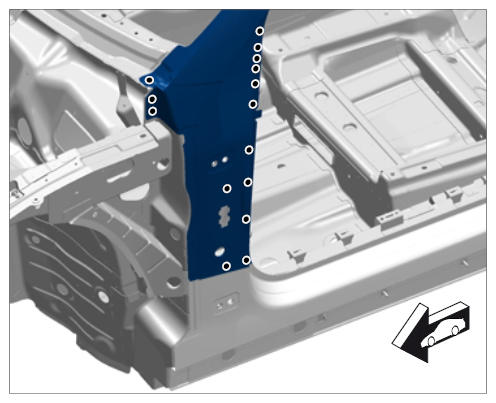

Fig 5: Identifying A-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove A-pillar.
Remove remaining piece of wing attachment strip.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 5.1. Drill out spotwelds using spotweld drill .

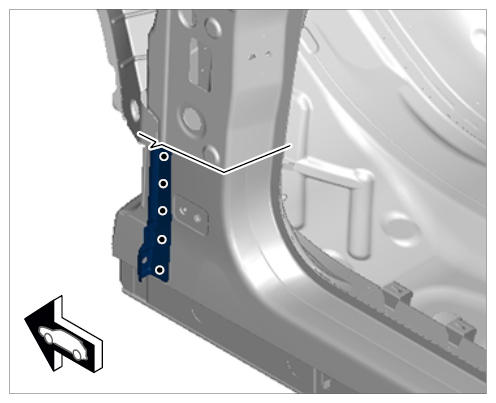

  Fig 6: Identifying Wing Attachment Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
