Preparing A-Pillar For Installation

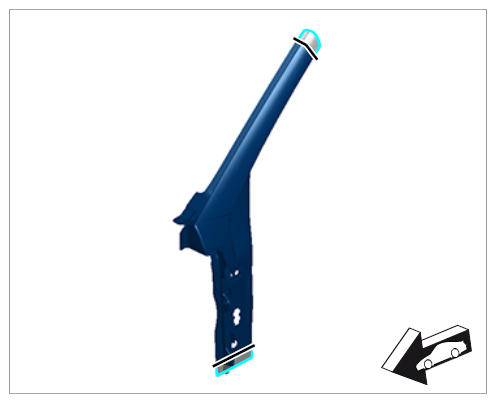

Fit in A-pillar.
1. 1.1. Cut A-pillar at the transitions to the body leaving an overlap of 30 mm.
2. 1.2. Fit in A-pillar again.
3. 1.3. Make cuts through the A-pillar and body in the overlap areas.

  Fig 1: Identifying A-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Shorten the wing attachment strip to prevent an overlap in the welded area on the A-pillar.

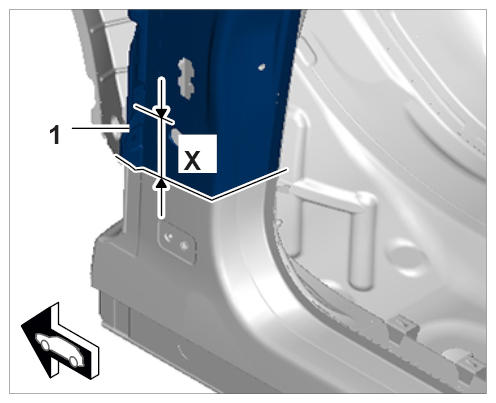

Cut back the wing rail -1- . → Dimension x: 90 mm

Fig 2: Identifying Wing Rail Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Prepare connection areas for bonding and welding.

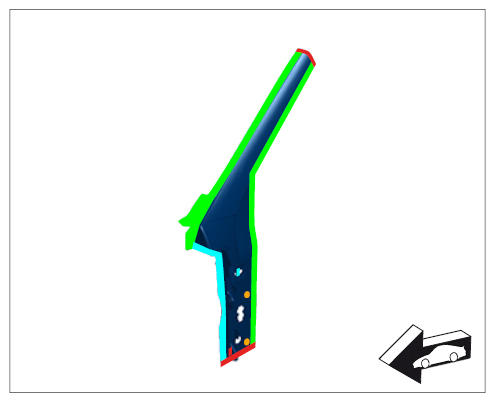

Fig 3: Identifying A-Pillar Connection Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Orange	Resistance spot-welding
Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Plug-welding/apply a full weld using inert gas without bonding

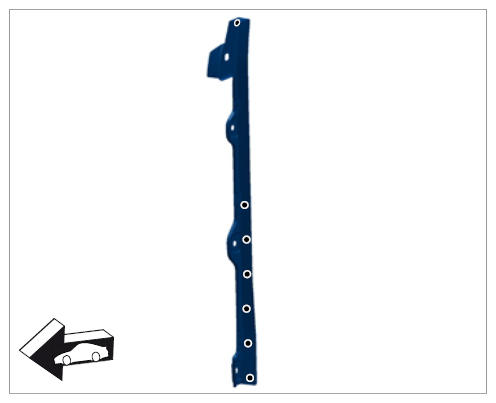

Prepare wing rail.
1. 4.1. Drill holes for plug-welding in the marked areas on the rail using a drill bit with a diameter of → Diameter: 8.0 mm.

  Fig 4: Identifying Wing Rail
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

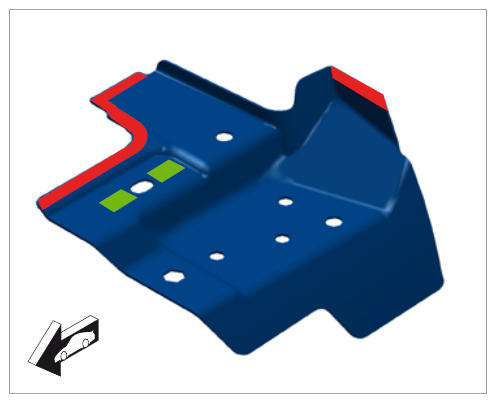

Prepare wing bracket for welding.

Fig 5: Identifying Wing Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
