Removing Rear Cross Member

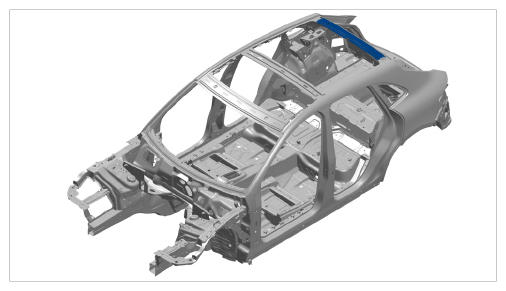

Fig 1: Rear Cross Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill  .
   1. 1.1. Heat bonding areas marked in yellow.
   2. 1.2. Remove upper part of rear cross member.

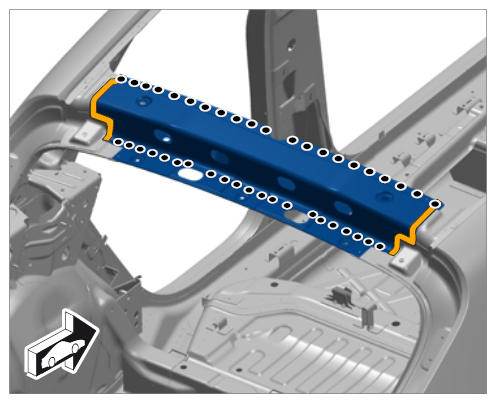

      Fig 2: Identifying Upper Part Of Rear Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill .
   1. 2.1. Remove lower part of cross member.

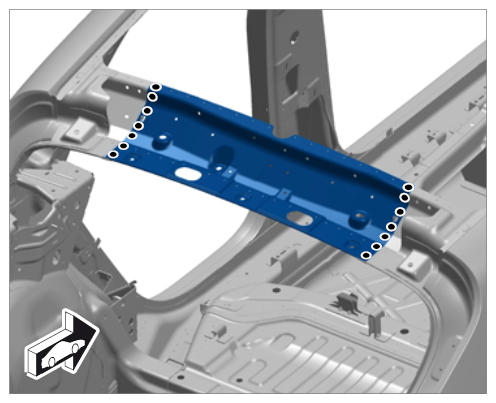

      Fig 3: Identifying Lower Part Of Rear Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
