Installing Rear Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install rear cross member and check that it fits perfectly. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
   1. 1.1. Resistance spot-weld lower part of rear cross member.
   2. 1.2. Apply adhesive to the areas marked in orange. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm

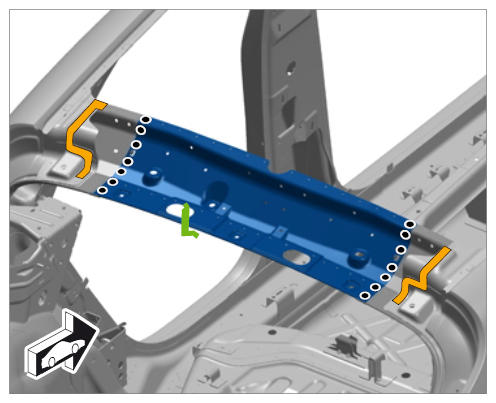

      Fig 1: Installing Lower Part Of Rear Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Resistance spot-weld upper part of rear cross member.

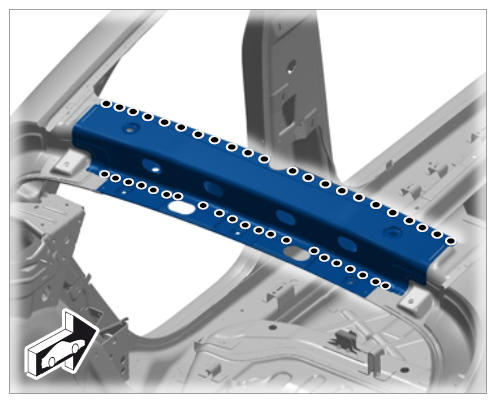

   Fig 2: Installing Upper Part Of Rear Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
