Preparing Connection Areas Of Upper Front Roof Frame

  1. Fit in lower part -2-  and upper part of upper front roof frame -1-  .
  2. Prepare connection areas for bonding and welding.

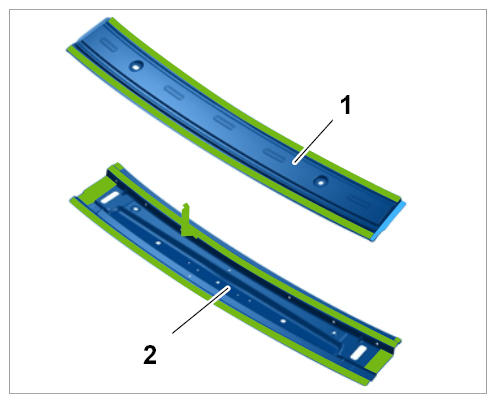

    Fig 1: Identifying Upper And Lower Part Of Roof Frame
    G10030658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding
    Blue Bonding
