Removing Roof Pillar

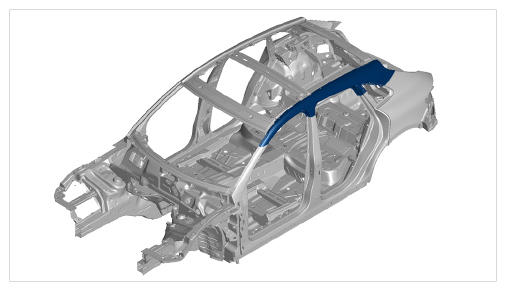

Fig 1: Roof Pillar Component Location (Outer Panel)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts W, X, Y, Z  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 70 mm → Distance: 120 mm → Distance: 90 mm → Distance: 50 mm

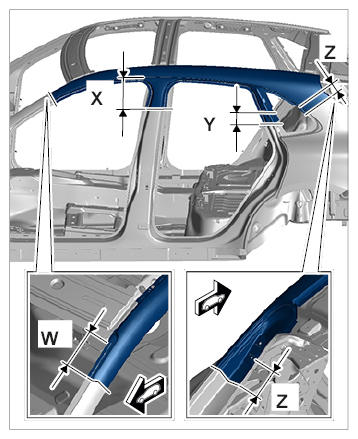

   Fig 2: Identifying Roof Pillar Mark Cutting Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill;  .

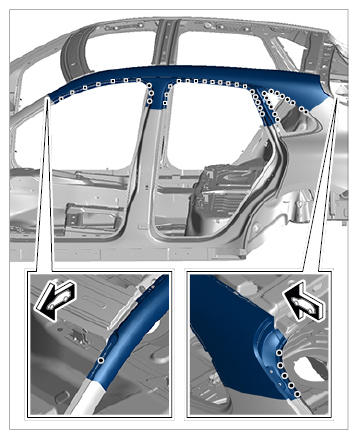

   Fig 3: Identifying Roof Pillar Spotwelds Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

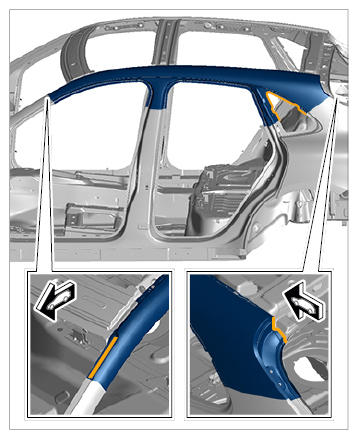

   Fig 4: Identifying Roof Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat the marked bonding areas.
   Fig 5: Identifying Roof Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The front and center roof cross members overlap the roof pillar. Make a sufficient gap between the components before removing the roof pillar.

4. Make a sufficient gap with respect to the roof pillar in area -A-  on the front and center roof cross members.
   1. 4.1. Remove roof pillar.

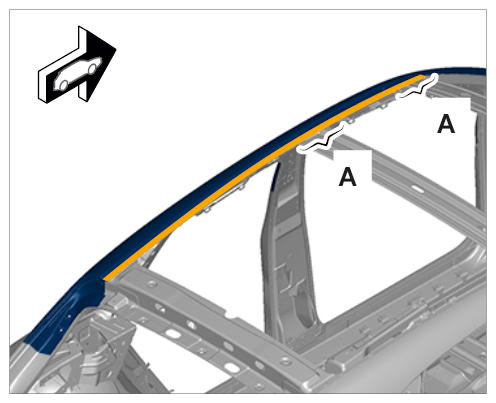

      Fig 6: Identifying Roof Pillar
