Removing Roof Pillar

Installation position of roof pillar

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill;

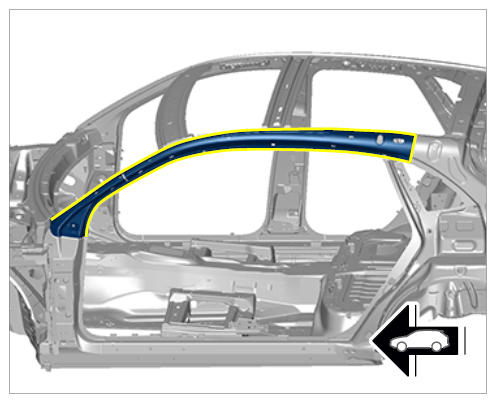

   Fig 1: Roof Pillar Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

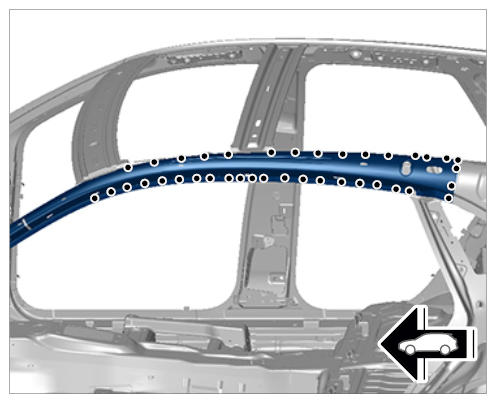

   Fig 2: Identifying Roof Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

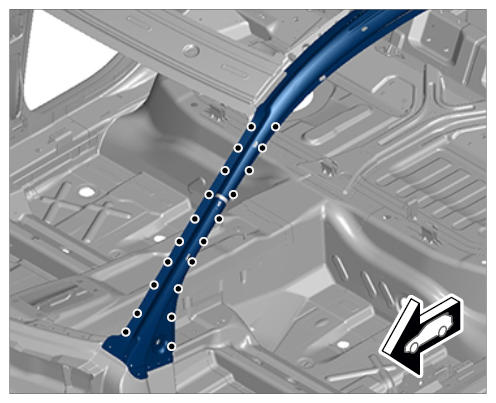

   Fig 3: Identifying Roof Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat the marked bonding areas.
   1. 2.1. Remove roof pillar.

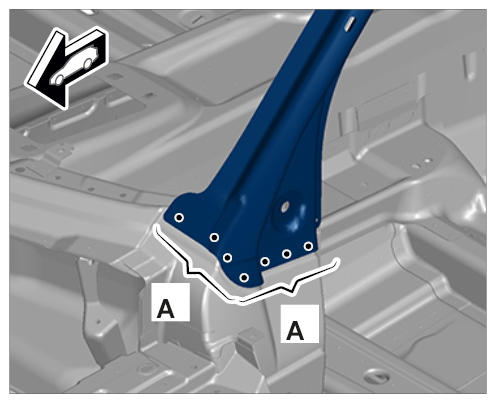

      Fig 4: Identifying Roof Pillar

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
