Preparing Roof Pillar For Installation

  1. Fit in the roof pillar.
  2. Completely drill holes for blind rivet joints in the marked areas -A-  . → Diameter: 6.5 mm

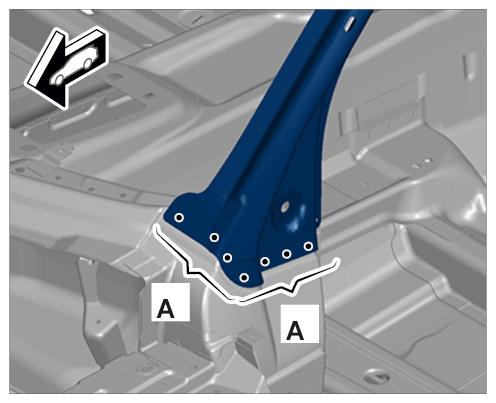

    Fig 1: Identifying Blind Rivet Joints Holes Drilling Areas
    G10030624Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Prepare the marked connection areas for bonding and welding.

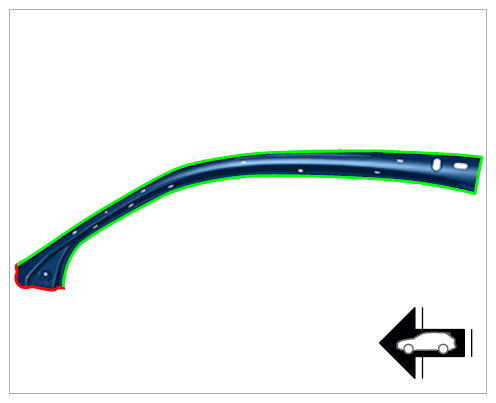

    Fig 2: Identifying Roof Pillar Mark Connection Areas
    G10030625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding + bonding
    Red Bonding + blind rivets
