Installing Roof Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install roof pillar and check that it fits perfectly. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
   1. 1.1. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE→ Application depth: 3.0 mm

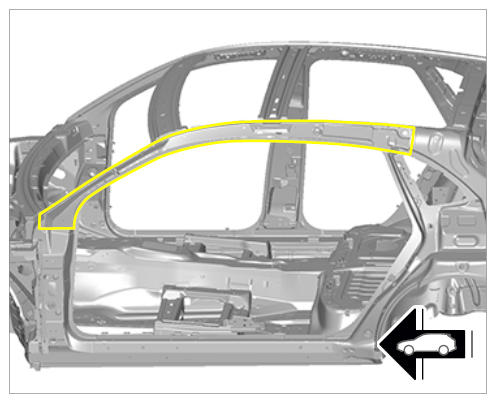

      Fig 1: Identifying Adhesive Applying Areas

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Resistance spot-weld the roof pillar.

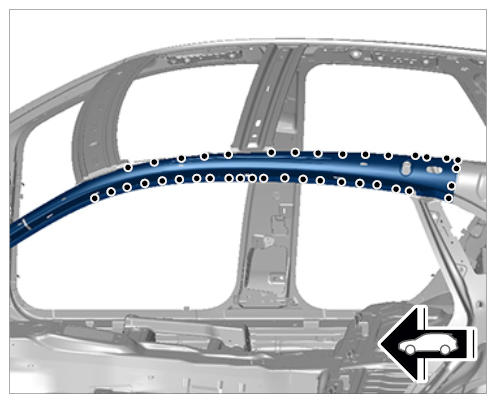

   Fig 2: Identifying Roof Pillar Spot-Weld Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

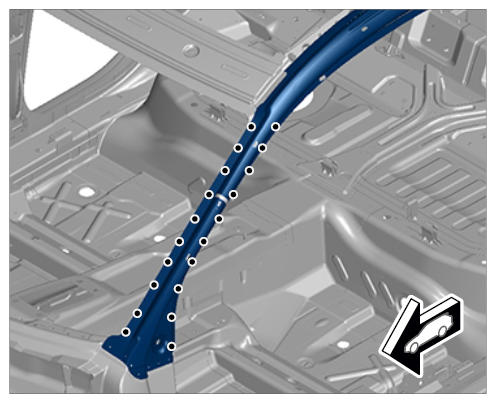

   Fig 3: Identifying Roof Pillar Spot-Weld Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Rivet in the roof pillar in area -A-  . → BLIND RIVET 999.190.227.01

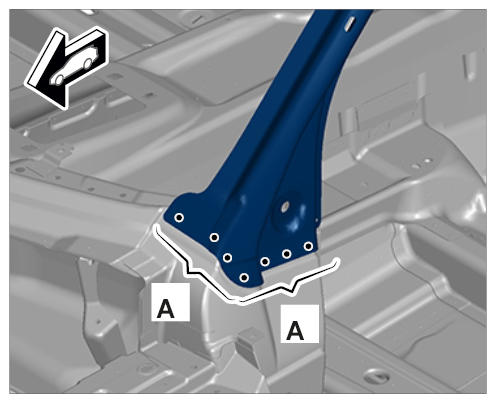

   Fig 4: Identifying Roof Pillar Rivet Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
