Preparing Connection Areas Of Body For Installing Roof

Information

Do not apply zinc powder paint to the bonding areas.

1. Clean welding and bonding areas.

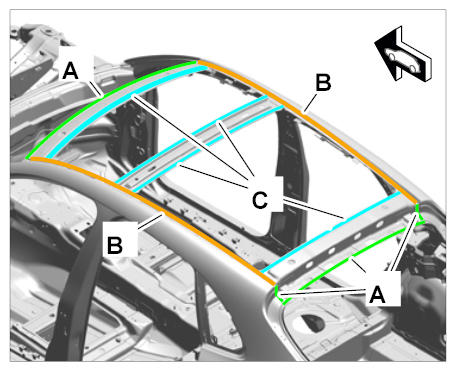

   Fig 1: Identifying Body Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Prepare connection flanges in areas -A-  for resistance spot-welding and bonding.
   2. 1.2. Prepare connection flanges in areas -B-  for bonding.
   3. 1.3. Prepare bonding areas of support adhesive -C-  for bonding with window adhesive.

Information

Do not apply zinc powder paint to the bonding areas.

1. Clean welding and bonding areas.
   Fig 1: Identifying Body Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Prepare connection flanges in areas -A-  for resistance spot-welding and bonding.
   2. 1.2. Prepare connection flanges in areas -B-  for bonding.
   3. 1.3. Prepare bonding areas of support adhesive -C-  for bonding with window adhesive.
