Preparing Connection Areas Of The Body For Installation

  1. Prepare marked areas on the body for joining.

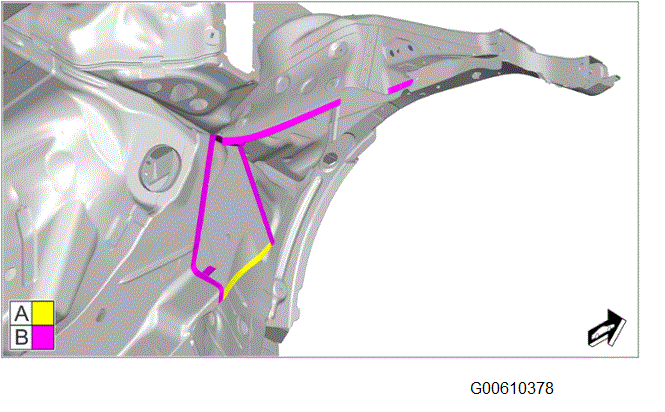

    G00610378Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint areas

    A  Bonding + resistance spot-welding.

    → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

    B  Apply a full steel weld.
