Removing Front Longitudinal Member (Front Cut)

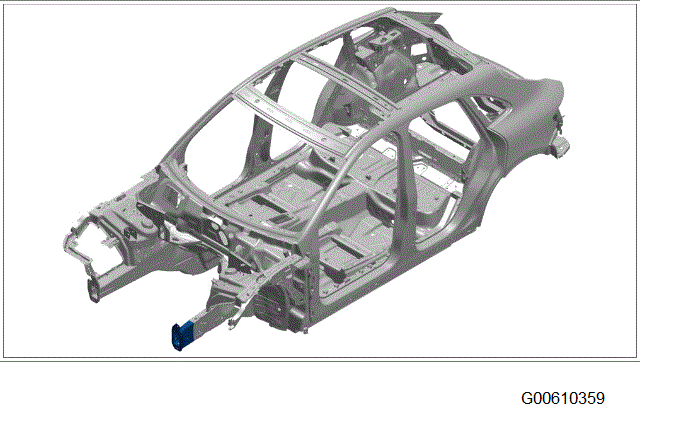

Fig 1: Front Longitudinal Member Component Location (Front Cut)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of front longitudinal member (section)

Information

1. Make a rough cut on the front longitudinal member (section).
   1. Prepare front longitudinal member (section) for welding.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

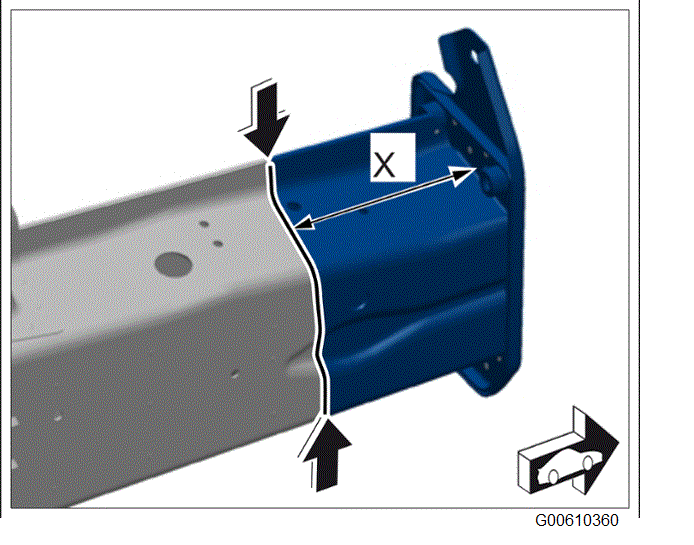

   Preparing front longitudinal member (section)

   Red Plug-welding/apply a full weld using inert gas without bonding
