Installing Front Longitudinal Member (Front Cut)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install front longitudinal member (section) and check that it fits perfectly. Check gap dimensions.

   5X00IN DIAGRAM - BODY GAP DIMENSIONS

2. Apply a full weld to the area -arrows- using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

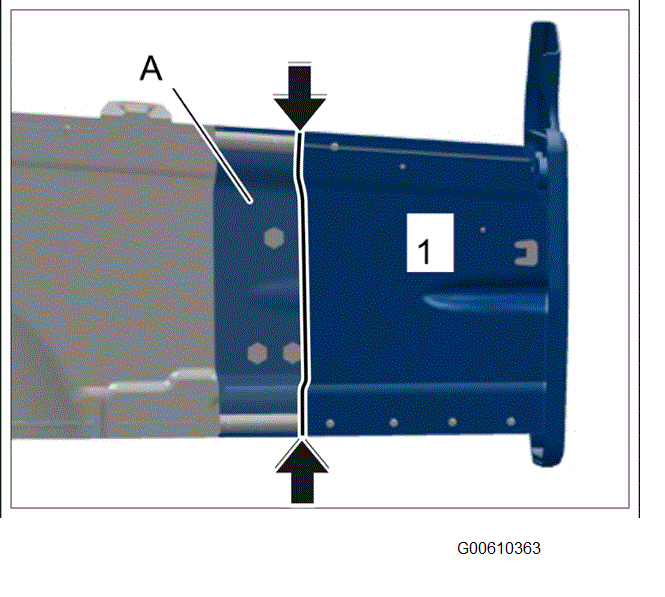

   Installing front longitudinal member (section)
