Removing Front Side Member

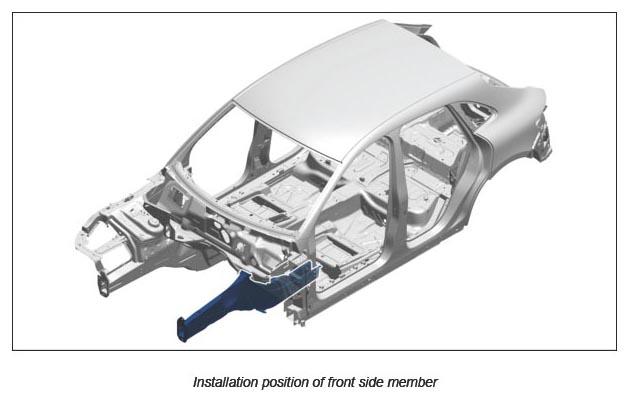

Fig 1: Front Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

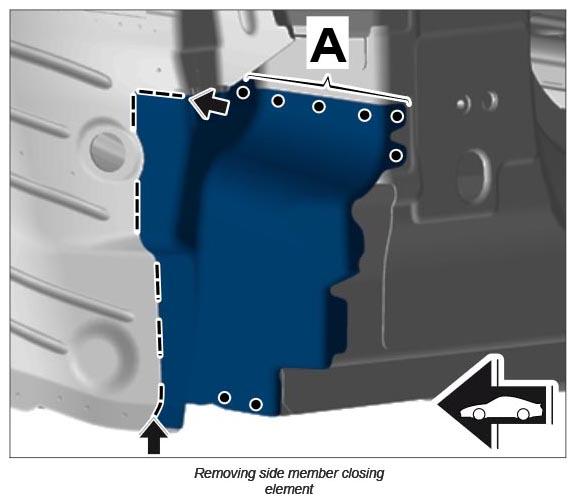

1. Drill out spotwelds using spotweld drill;   .
   1. 1.1. Grind down welded seams.
   2. 1.2. Remove side member closing element.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill;   .

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

   1. 2.1. Mark and make cut.
   2. 2.2. Remove extension for front wheel housing -1-  . The remaining part -2-  stays in the vehicle.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

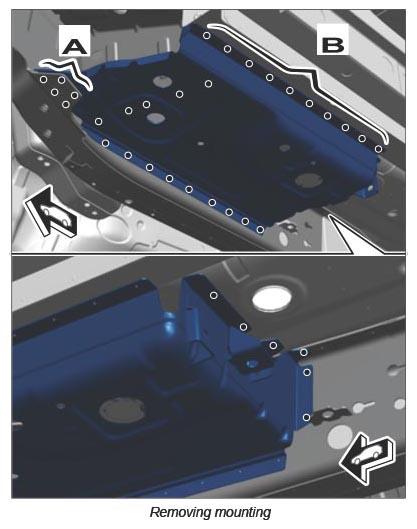

3. Drill out spotwelds using spotweld drill;   .
   1. 3.1. Drill out spotwelds -A-  using spotweld drill,   by drilling through two plate thicknesses.
   2. 3.2. Drill out spotwelds -B-  through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.
   3. 3.3. Remove mounting.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

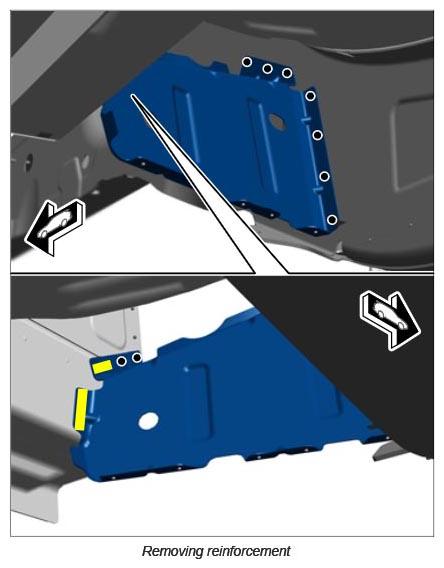

4. Drill out spotwelds using spotweld drill;   .
   1. 4.1. Heat the marked bonding areas.
   2. 4.2. Remove reinforcement.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

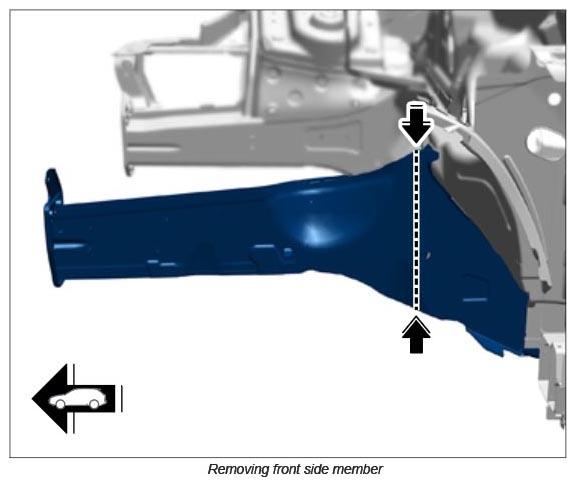

5. Mark and make a rough cut on the longitudinal member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

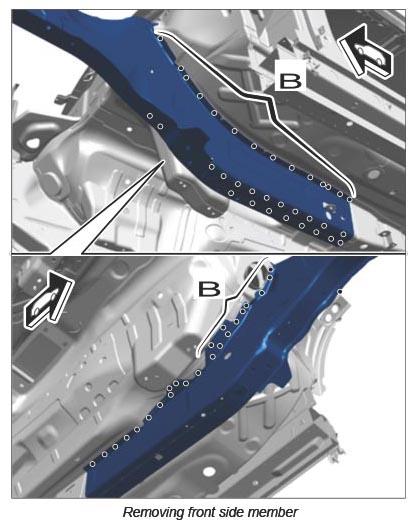

6. Drill out spotwelds using spotweld drill;   .
   1. 6.1. Drill out spotwelds -B-  through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

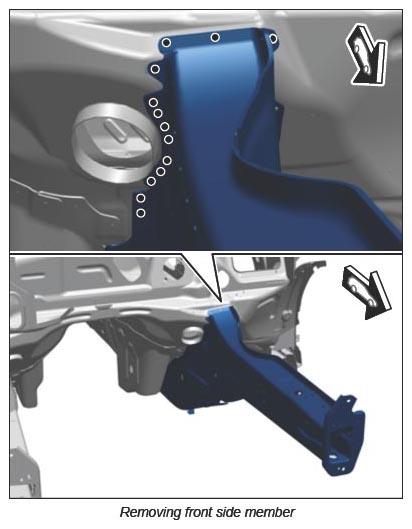

7. Drill out spotwelds through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

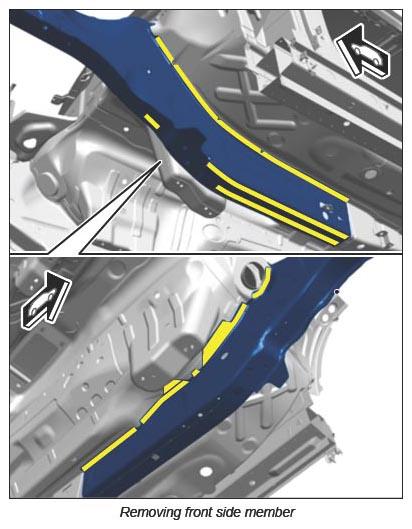

8. Heat the marked bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

9. Remove front side member.
