Installing Front Side Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install front side member and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS
   1. 1.1. Apply foam filler to the body in area -A-  . → WM 5X00IN PROCESSING BODY FOAM FILLER

      Make sure that all openings and gaps between the body and C-pillar reinforcement are closed off with the sealing compound.

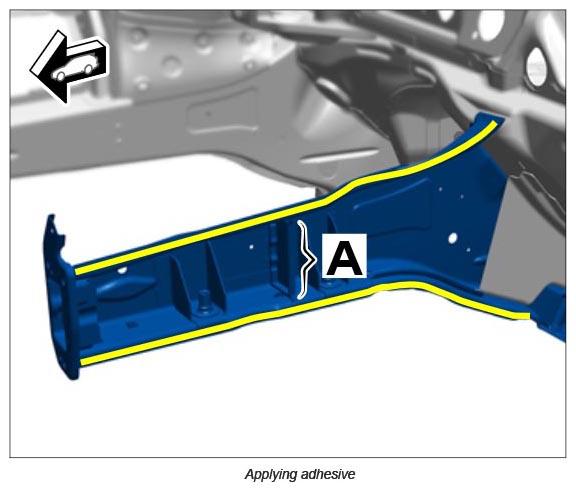

   2. 1.2. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE  → Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

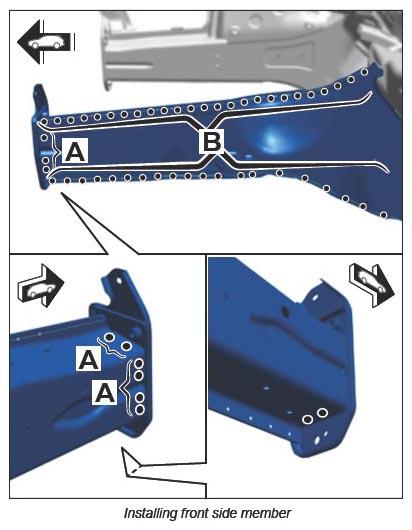

2. Plug-weld area -A-  using inert gas.
   1. 2.1. Resistance spot-weld area -B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

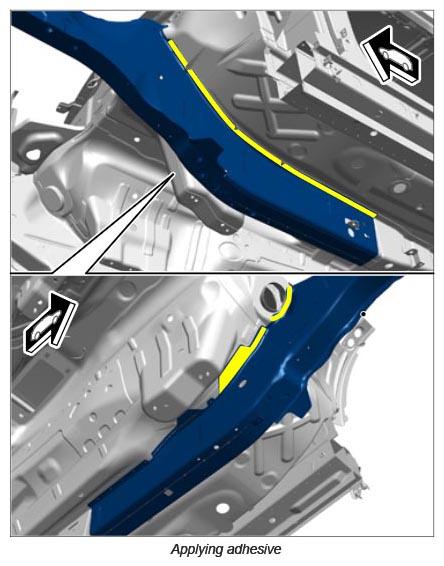

3. Apply adhesive to the areas marked in yellow.

   → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

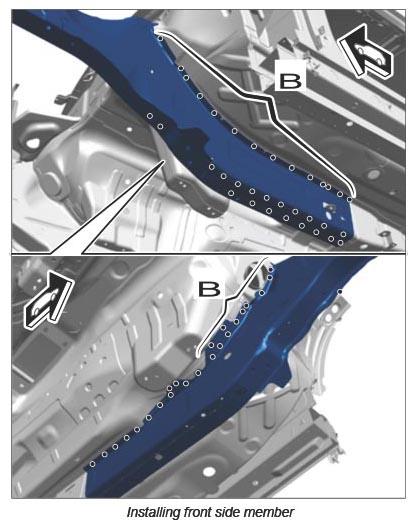

4. Spot-weld front side member using inert gas and set blind rivets.
   1. 4.1. Rivet in front side member in the marked areas -B-  . → BLIND RIVET 999.190.227.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

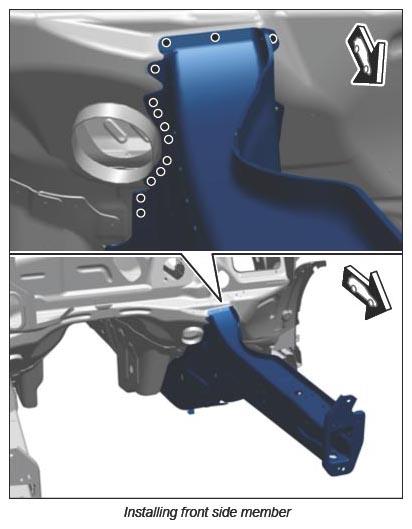

5. Rivet in front side member. → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

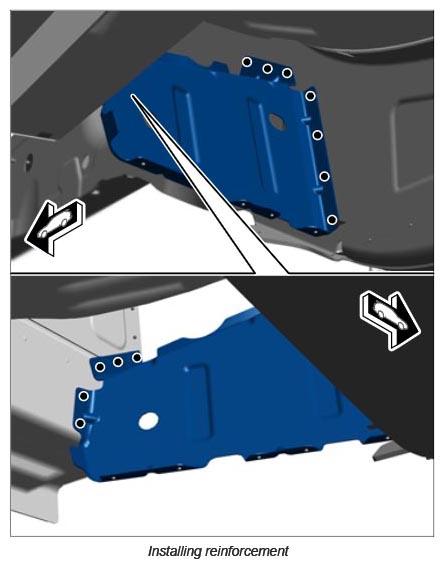

6. Plug-weld reinforcement using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

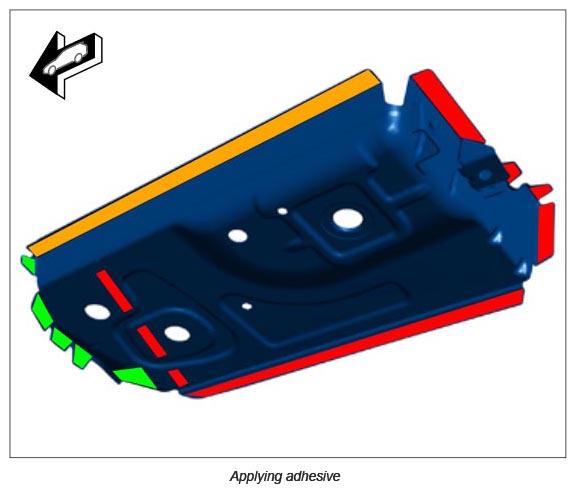

7. Apply adhesive to the areas marked in orange.

   → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE  → Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

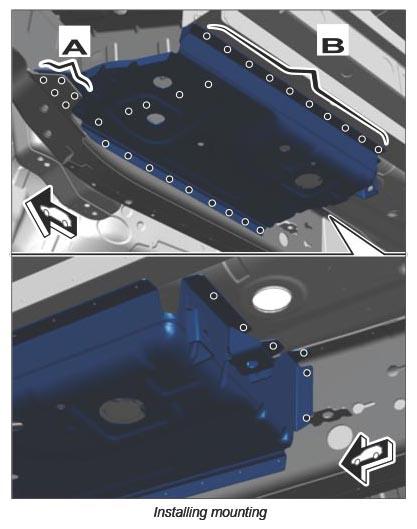

8. Spot-weld the mounting using inert gas and set blind rivets.
   1. 8.1. Resistance spot-weld area -A-  .
   2. 8.2. Rivet in the mounting in area -B-  . → BLIND RIVET 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

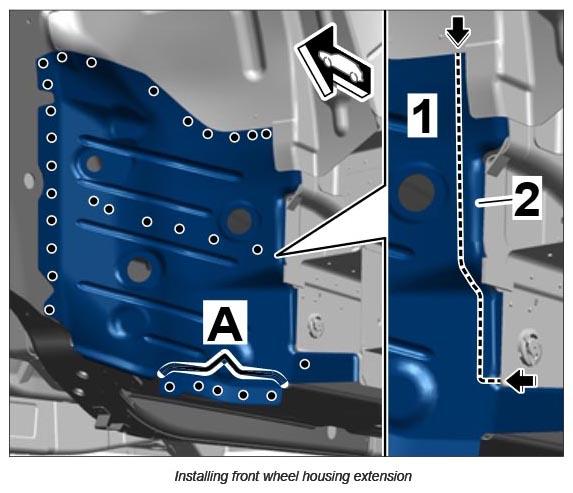

9. Plug-weld front wheel housing extension using inert gas.
   1. 9.1. Resistance spot-weld area -A-  .
   2. 9.2. Apply a full weld to the area using inert gas.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
