Preparing body connection areas

  1. Align the sealing surface and connections of the body.
  2. De-burr connection points and prepare them for welding.
  3. Prepare marked areas for welding.
    G12889092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

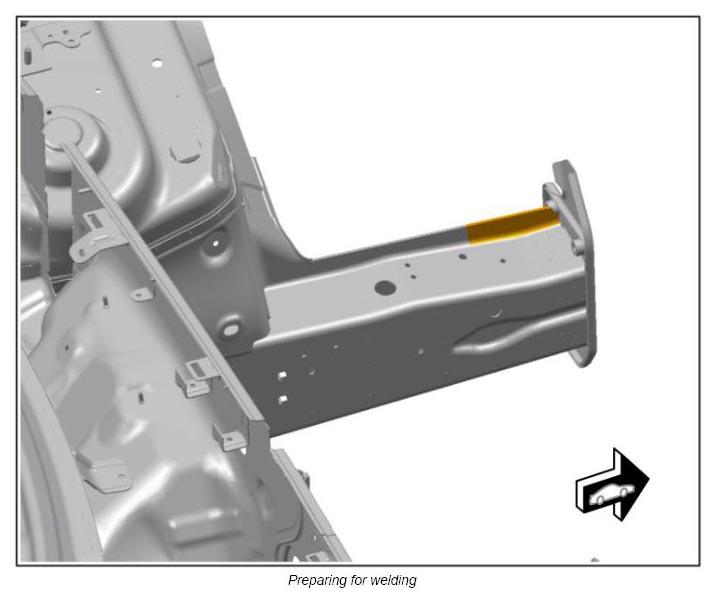

    G12889093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

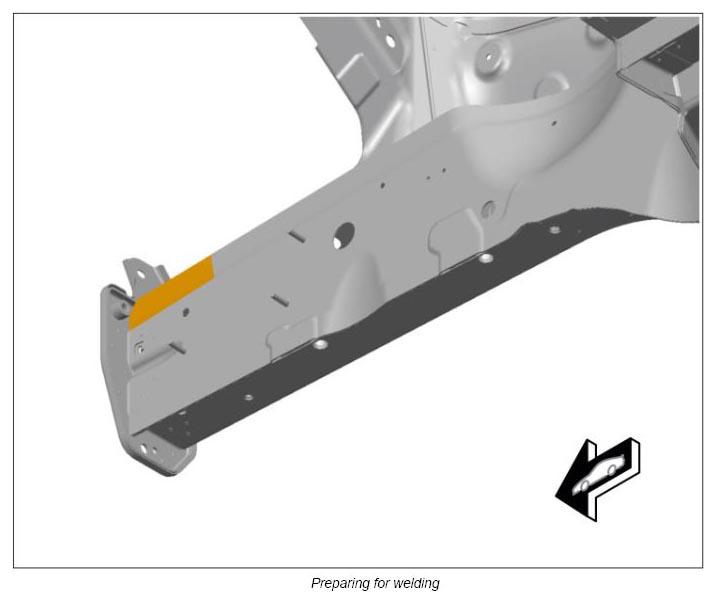

    G12889094Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Prepare the marked areas for bonding. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
    G12889095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

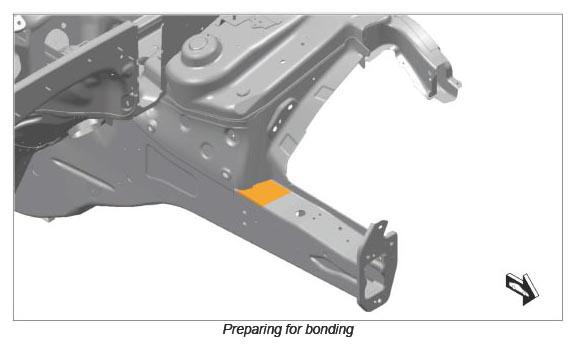

    G12889096Courtesy of PORSCHE CARS NORTH AMERICA, INC.
