Technical Values

TORQUE SPECIFICATION

Location	Description	Type	Basic value

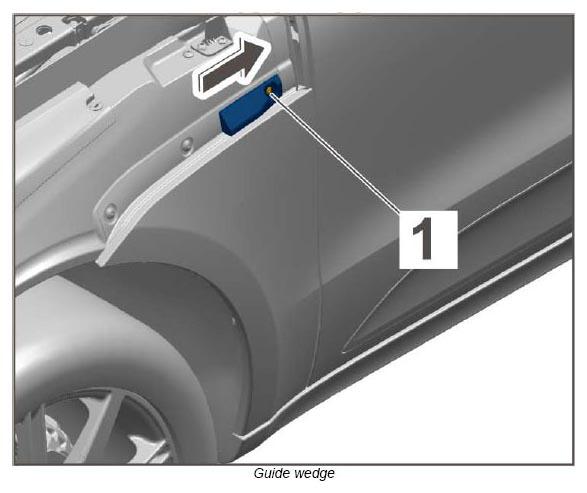

Fastening screws for guide wedge	Item 1	Tightening torque	8 Nm (6 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

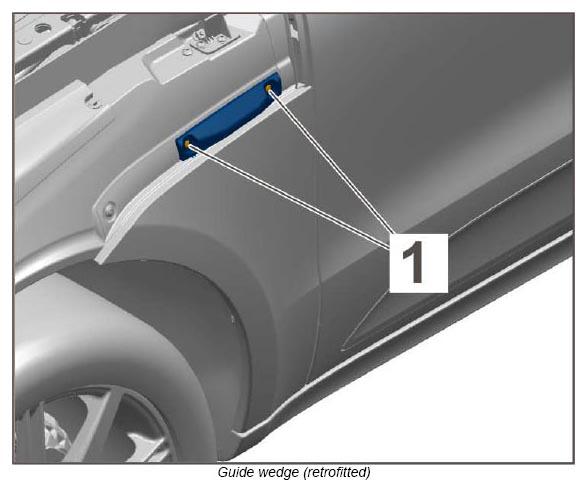

Fastening screw for guide wedge (retrofitted)	Item 1	Tightening torque	8 Nm (6 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

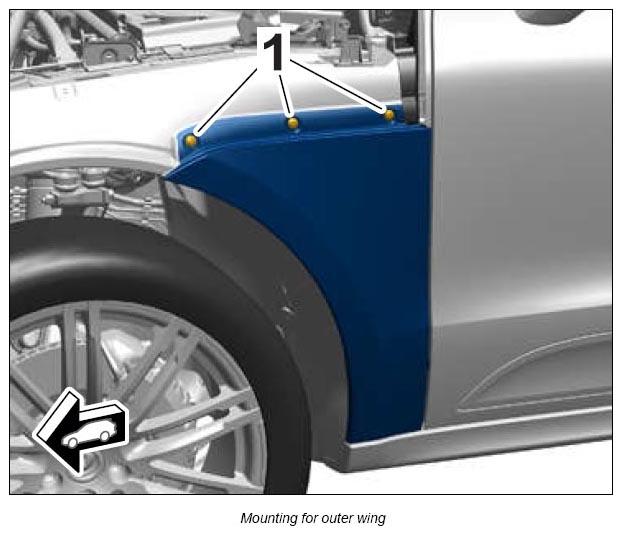

Fastening screw for outer wing		Tightening torque	10 Nm (7.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

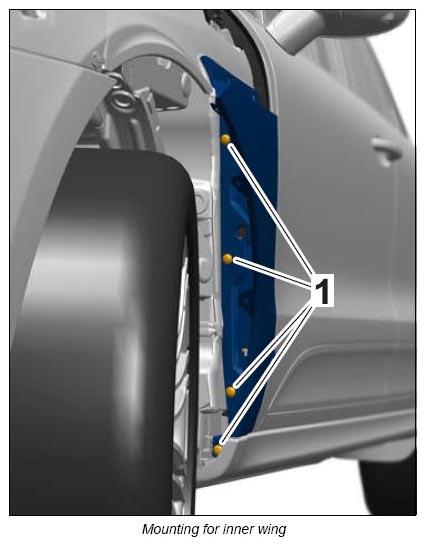

Fastening screw for inner wing		Tightening torque	10 Nm (7.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
