Removing wing

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

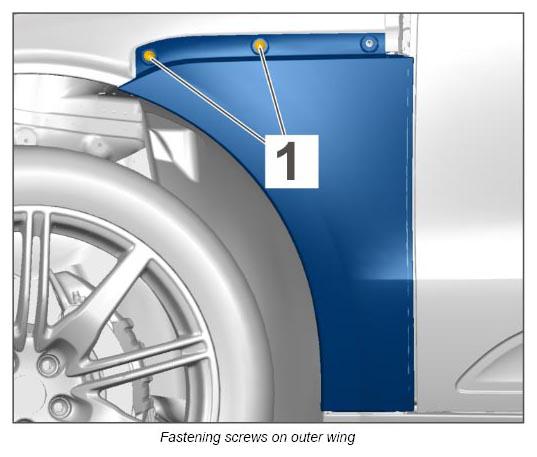

1. Unscrew and remove fastening screws -1-  on outer wing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

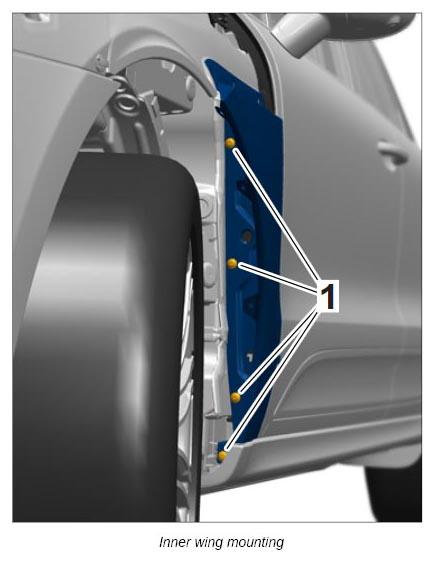

2. Unscrew and remove fastening screws on inner wing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

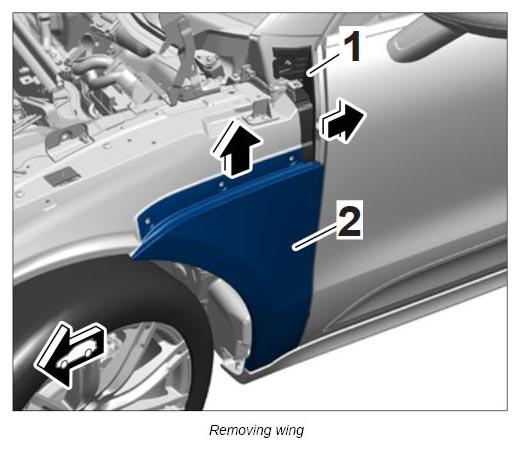

3. Push back cover on A-pillar -1-  and remove wing -2-  by pulling it upwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
