Removing guide wedge (retrofitted)

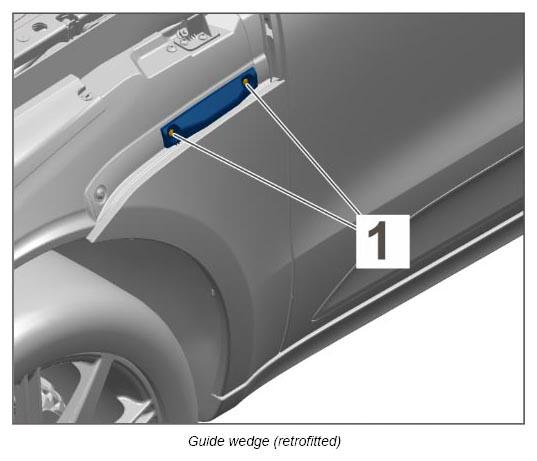

  1. Unscrew fastening screw -1-  .
    G12889047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off guide wedge.
