Removing Lock Carrier

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Disconnect battery ground strap. → 270619 REMOVING AND INSTALLING BATTERY
2. Remove engine cover.

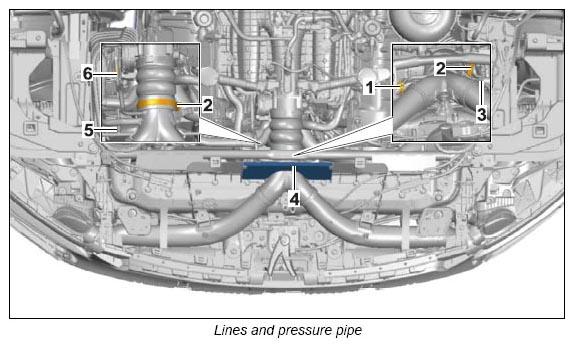

3. Remove rubber seal -4-  on feed-through element for pressure pipe.
4. Loosen hose clamp -2-  securing throttle-housing cover to pressure pipe and remove cover from pressure pipe. → 243519 REMOVING AND INSTALLING THROTTLE-HOUSING COVER
5. Loosen clamp and disconnect hose -1-  from pressure pipe.
6. Loosen clamp and disconnect hose -6-  from pressure line.
7. Disconnect hose -5-  from vacuum line for the ambient air valves.
8. Release and disconnect electric plug connection -3-  on the pressure sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

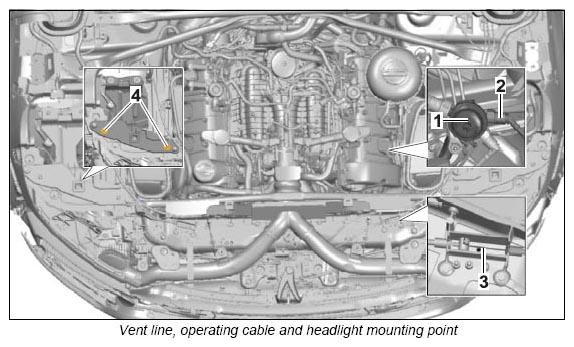

9. Release and disconnect coolant vent line -2-  on the bleeder valve -1-  .
10. Unclip and disconnect operating cable -3-  for bonnet release from the bracket.
11. Unscrew front fastening screws -4-  on the mounting for the right headlight.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

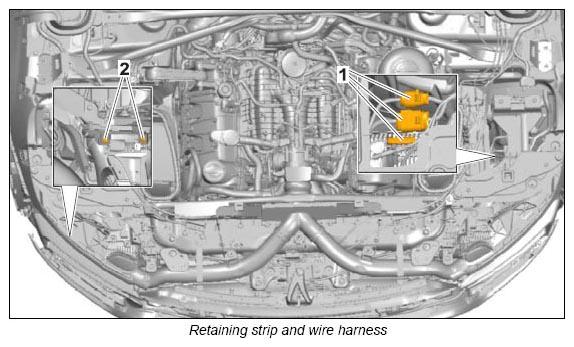

12. Release and disconnect electric plug connections -1-  for the front wire harness, unclip wire harness at the body and secure it to the lock carrier. → 971519 REMOVING AND INSTALLING FRONT WIRE HARNESS
13. Unscrew side fastening screws -2-  for the front retaining strips.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

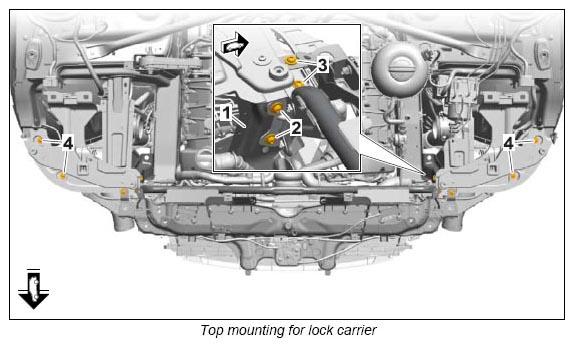

14. Remove upper transverse strut for lock carrier at the body -1 -  .
    1. 14.1. Unscrew fastening screws -3-  at the top.
    2. 14.2. Unscrew fastening screws -2-  at the sides.
15. Unscrew top fastening screws -4-  for the lock carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

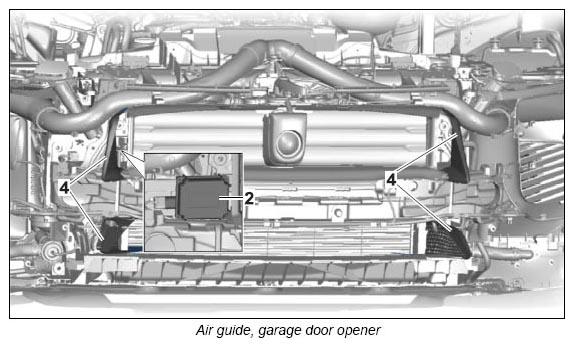

16. Swivel side sections of the air guides -4-  inwards.
17. Remove control unit for garage door opener -2-  . → 967919 REMOVING AND INSTALLING CONTROL UNIT FOR GARAGE DOOR OPENER
18. Unscrew fastening screw for bracket for garage door opener control unit and remove bracket.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

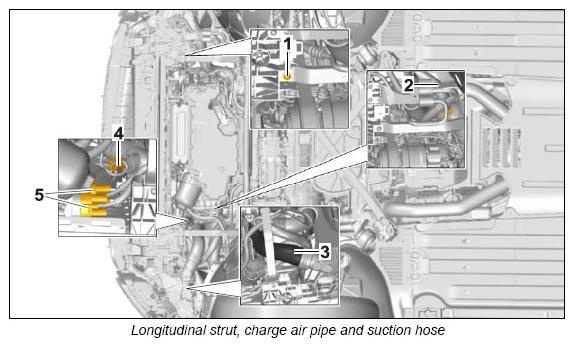

19. Unscrew fastening screws -1-  for supports at the lock carrier.
20. Disconnect charge air hose -3-  at the charge-air cooler.
21. Disconnect hose from the recirculating air valve -2-  on the intake manifold.
22. Release and disconnect electric plug connection -4-  at the coolant temperature sensor.
23. Release and disconnect electric plug connections for the electric fans -5-  and unclip the relevant wire harness at the lock carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

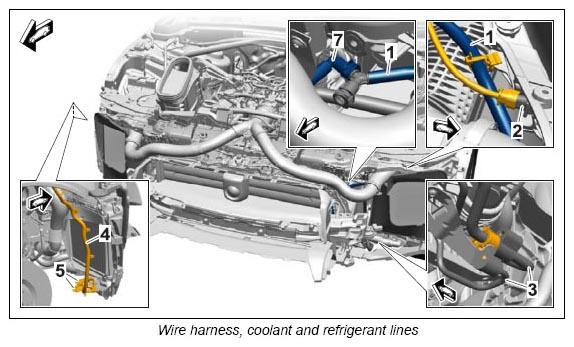

24. Unclip wire harness -4-  at the lock carrier and remove electric connector -5-  on the lock carrier.
25. Disconnect refrigerant lines -3-  at the connection point to the condenser and close off openings using stoppers.
26. Remove front air guides -6-  for the charge-air cooler. → 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER
27. Release and disconnect electric plug connections -2-  for airbag sensors.
28. Disconnect hose -1-  for headlight cleaning system at the connection point -7-  , unclip at the lock carrier and guide out.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

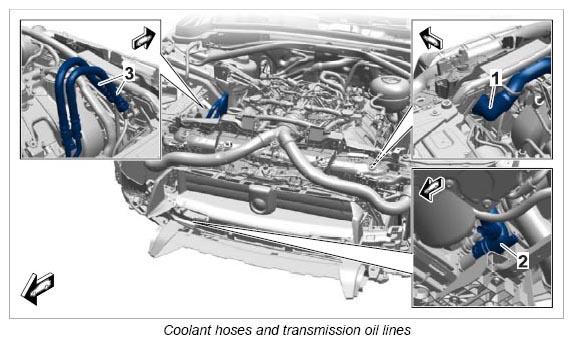

29. Remove upper coolant hose -1 -  at the radiator.
30. Remove lower coolant hose -2-  at the radiator.
31. Release and disconnect connections for the transmission oil lines -3-  and close off openings using stoppers.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

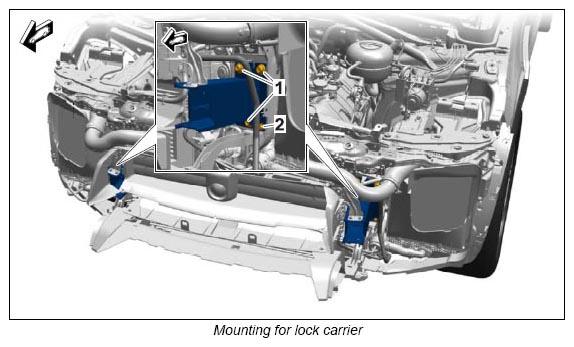

32. Secure lock carrier from falling down, unscrew fastening screws -1, 2-  and remove lock carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
