Removing Impact Absorber Mount

Information

Only drill through one plate thickness on the spotwelds. Make sure not to damage the plate underneath when doing this.

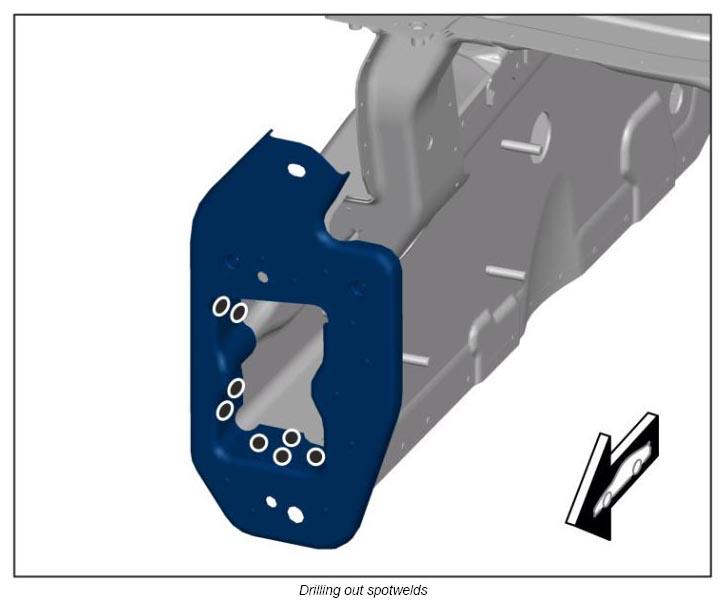

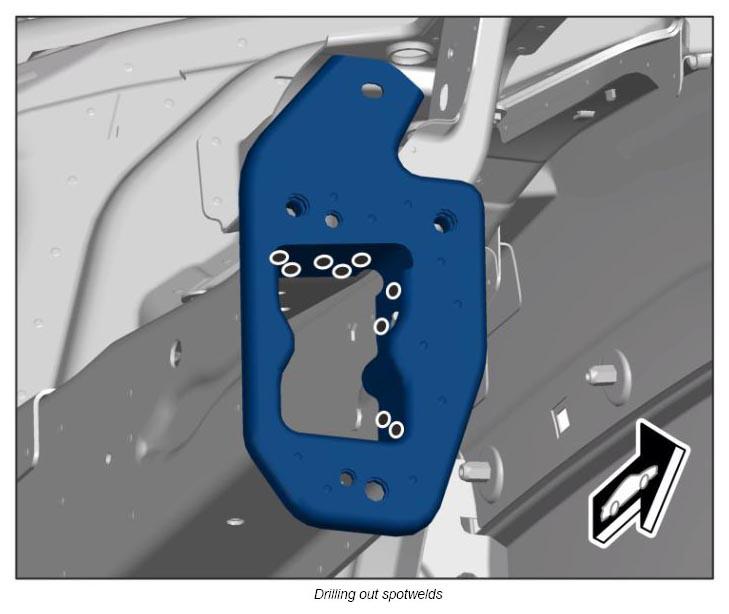

1. Drill out inner spotwelds on impact absorber mount.
   Fig 1: Impact Absorber Mount Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove impact absorber mount.
