Removing Control Unit For Auxiliary Alarm System

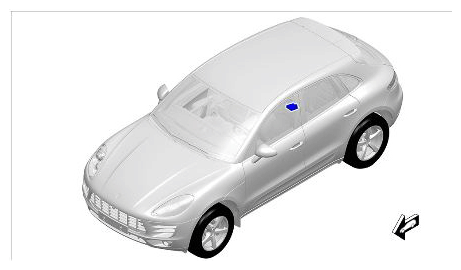

Installation position of control unit for auxiliary alarm system

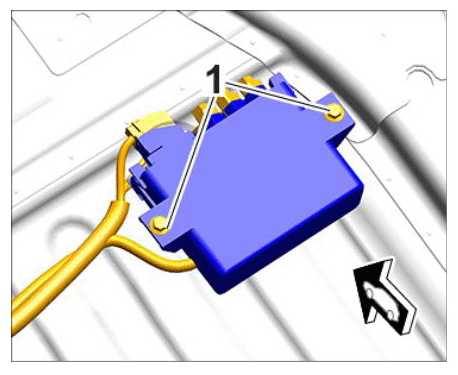

1. Loosen shear-off nuts -1-  using socket-wrench insert 9259  and remove holder for control unit for auxiliary alarm system.

   Removing control unit for auxiliary alarm system

2. Remove control unit for auxiliary alarm system from its holder.
3. Release electric plug connection -a-  , fold the securing clip over -A-  and disconnect plug connection -B-  .

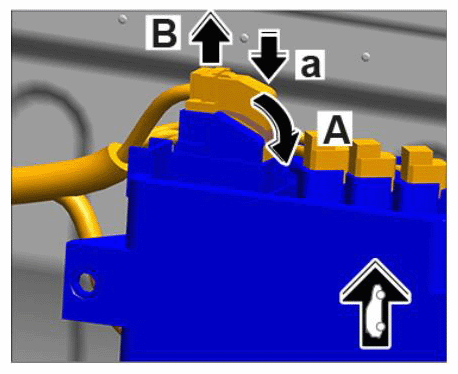

   Disconnecting electric plug connection

4. Release antenna plug connections -a, A-  and disconnect them -B-  .

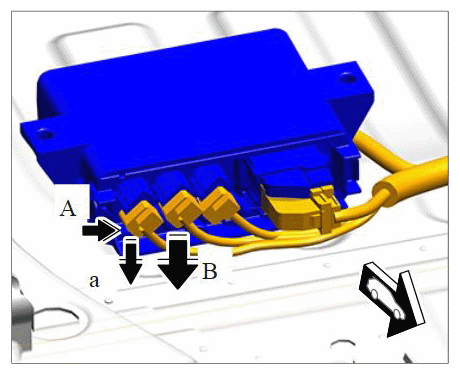

   Disconnecting antenna plug connections

5. Remove control unit for auxiliary alarm system from the vehicle.
