Installing Control Unit For Auxiliary Alarm System

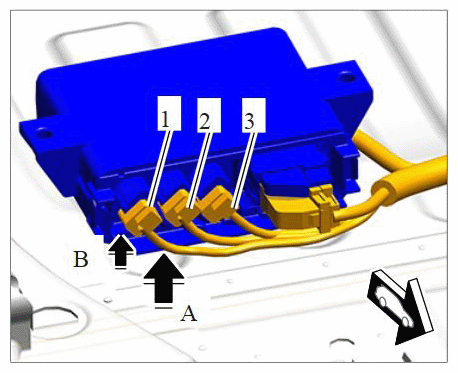

1. Plug in antenna plug connections for GSM -1-  , GPS -2-  and driver card -3-  (-A-  ) and lock securely -B-  .

   Plugging in antenna plug connections

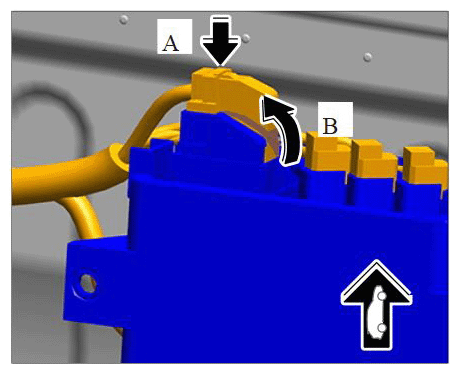

2. Plug in electric plug connection -A-  and fold locking clip over -B-  .

   Connecting electric plug connection

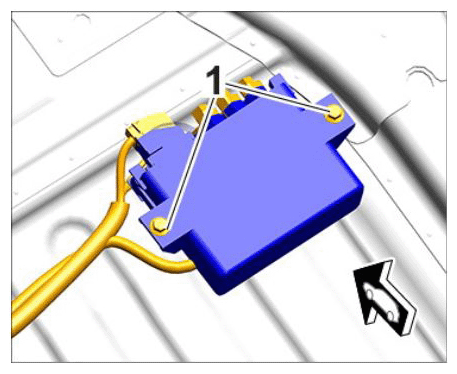

3. Push control unit for auxiliary alarm system into holder and position it on the screw bolts.
4. Tighten shear-off nuts -1-  until they break off.

Installing control unit for auxiliary alarm system
