Removing Plug Socket In Rear Centre Console

  1. Release connector on plug socket and disconnect it.

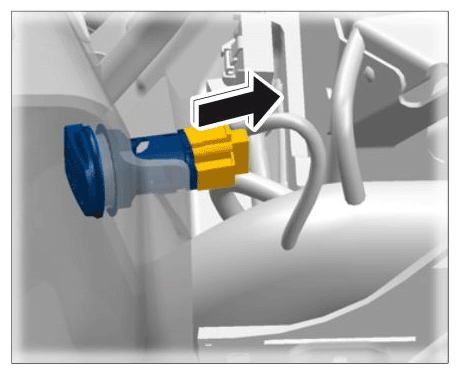

    G11982423

    Disconnecting connector

  2. Open the cover of the plug socket and press out the plug socket -1-  using a screwdriver -A-  .

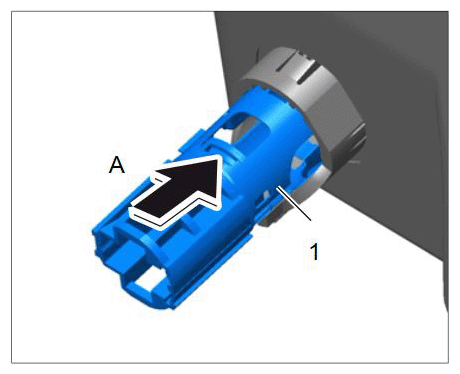

G11982424

Removing plug socket

Release the cover -2-  (-B-  ) and press it outwards -c-

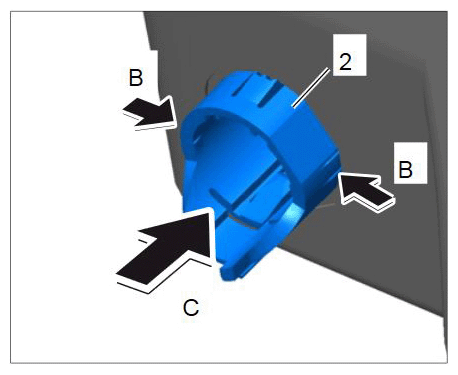

G11982425

Removing cover on plug socket
