Removing Plug Socket In Front Centre Console

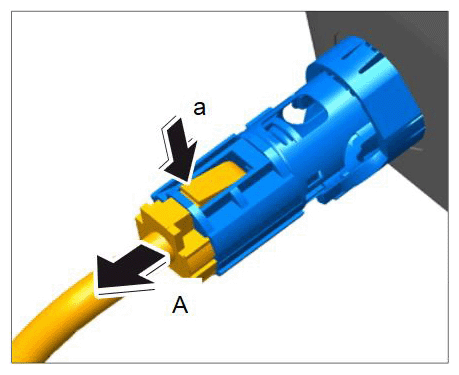

1. Release plug connection on the plug socket -a-  and disconnect it -A-

   Disconnecting plug connection on plug socket

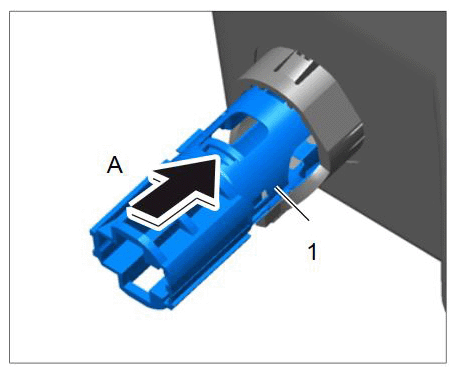

2. Open the cover of the plug socket and press plug socket -1-  on the underside outwards using a screwdriver -A-

   Removing plug socket

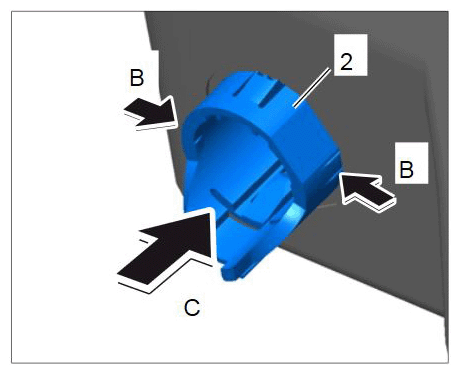

3. Release the cover -2-  (-B-  ) and press it outwards -c-

Removing cover on plug socket
