Installing horn

  1. Install horn -1-  .
    1. 1.1. Position the horn so that the cut-out in the holder goes around the bolt on the bumper -arrow-  .
    2. 1.2. Tighten fastening screw -2-  . Tightening torque 20 Nm (15 ftlb.)
    3. 1.3. Connect electric plug connection -3-  until the electric plug connection engages securely.

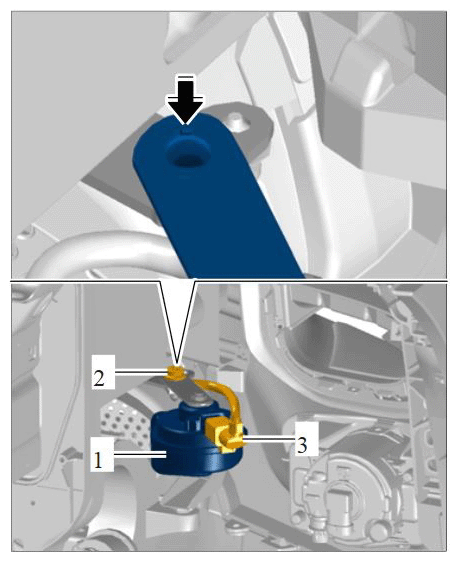

    G11982415

Installing horn
