Removing Gateway Control Unit
CAUTION:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
NOTE:
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
- Switch off ignition and pull remote control out of ignition lock.

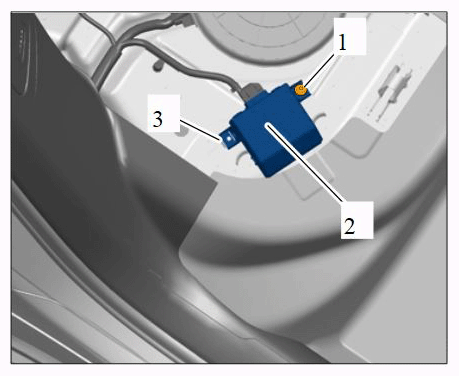

- Unscrew fastening screw -1- .
- Pull gateway control unit -2-
out of the clip -3-
.
Removing gateway control unit

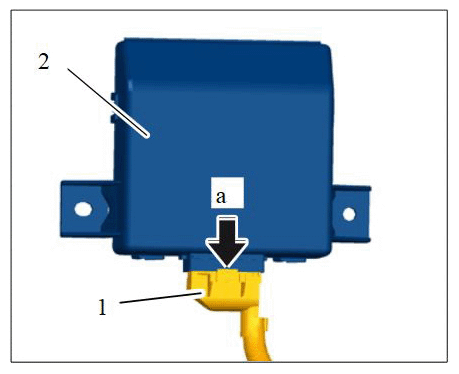

- Release electric plug connection -1- (-a- ) and pull it off the gateway control unit -2- .
Disconnecting electric plug connection
