WM, 4301IN Component Arrangement - Levelling System
The Cayenne models are available with an optional levelling system with fully supporting air suspension on both axles and an electronically controlled damping system Porsche Active Suspension Management (PASM).
The air suspension with level adjustment makes it possible to actively adapt the ground clearance of the Cayenne to the situation in which the vehicle is being used or to its load.
Depending on the load, various vehicle ride heights with various suspension characteristics can be achieved by increasing or decreasing the air volume. The amount of air needed for each air-spring strut is determined by means of a control unit and provided via an air supply consisting of a compressor, a solenoid valve unit and pressure accumulator.

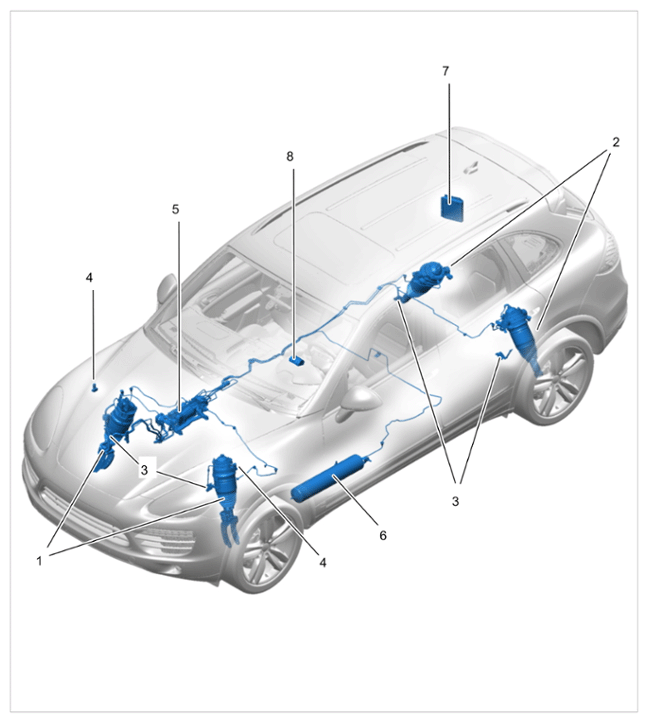

Component arrangement - air suspension system
| No. | Component designation | Qty. | Position |
|---|---|---|---|
| -1- | Air-spring strut, front axle | 2 | Wheel housing/lower control arm |
| -2- | Air-spring strut, rear axle | 2 | Air spring mounting/wheel bearing housing, lower |
| -3- | Level sensors | 4 | Upper control arm/front axle Upper control arm, front/rear axle |
| -4- | Body acceleration sensors (2x front and 1x rear) | 3 | Front wheel housing (right/left), right luggage compartment (integrated in levelling system/PASM control unit!) |
| -5- | Compressor and valve unit | 1 | Centre underbody, right |
| -6- | Pressure accumulator | 1 | Centre underbody, left |
| -7- | Levelling system/PASM control unit | 1 | Luggage compartment, right |
| -8- | PASM switch unit | 1 | Centre console |
