Removing Bellows For Steering-Gear Housing (Joint Boot)

Information

• Mark the position of the tie-rod ball on the thread before unscrewing it.
• Count the number of turns when unscrewing the tie-rod ball.
• It will then be possible to install the tie-rod ball back in the same position and retain the basic setting of the steering trapeze.
• However, this does not replace the suspension alignment.

Information

• Make sure that no dirt gets into the power-steering gear and bellows when removing and installing the bellows.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

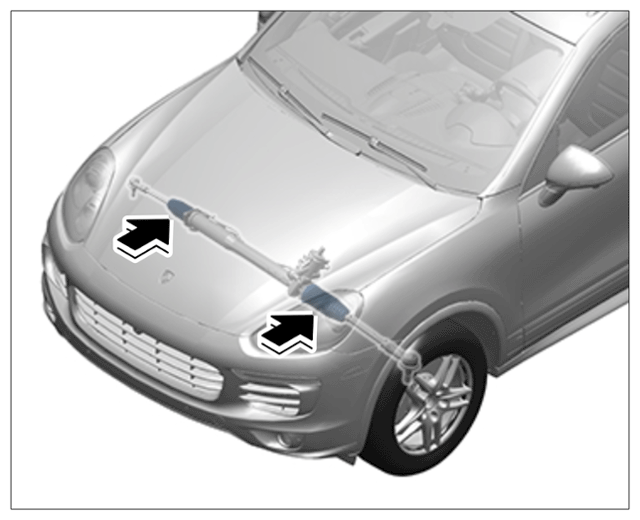

Installation position

1. Unscrew lock nut from tie rod.
2. Right tie rod:

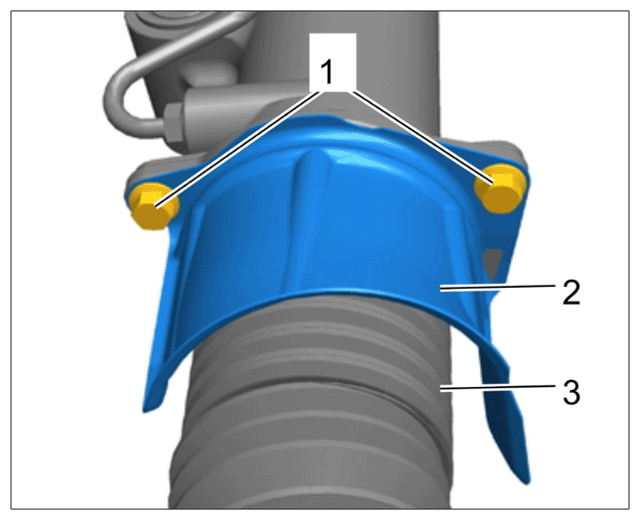

   Remove fastening screws -1-  on the heat shield -2-  near the bellows -3-  for the right tie rod.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat shield for right tie rod

3. Pull out heat shield -2-  .

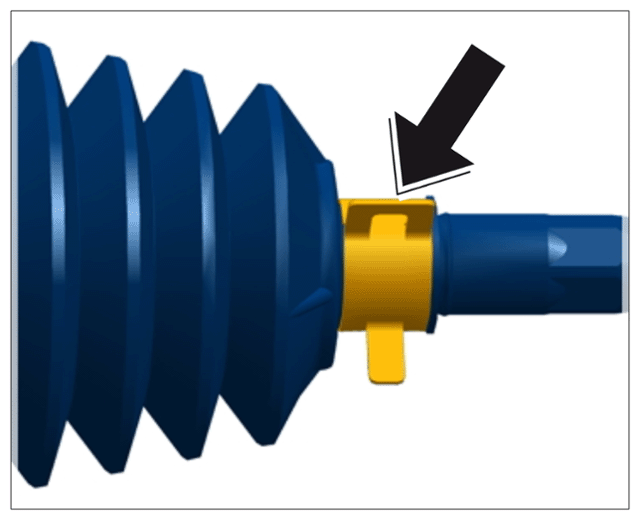

4. Loosen the outer clamp -arrow-  on the bellows using > VAS 6890 - Spring Band Clamp Pliers  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer clamp

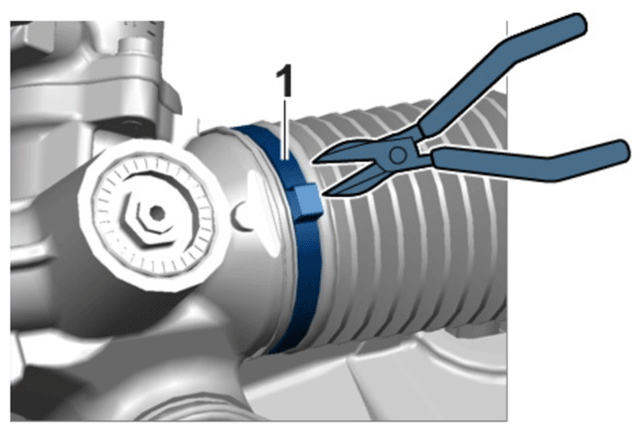

5. Loosen the inner clamp -1-  on the bellows using suitable pliers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening inner clamp

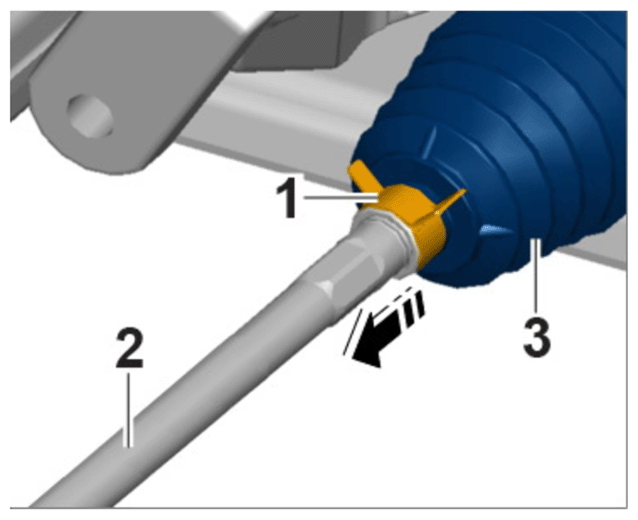

6. Pull bellows -3-  together with clamp -1-  off the tie rod -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off bellows (example)
