Steering Wiring 1

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS

Location Description Type Basic value Tolerance
No. 1: Threaded connection securing steering wheel to steering column M18 x 1.5 x 26 thread (only use screw once) Initial tightening 30 (22 ftlb.) Nm
No. 1: Threaded connection securing steering wheel to steering column M18 x 1.5 x 26 thread (only use screw once) Final tightening + 90°
No. 3: Threaded connection securing steering column to assembly bracket M8 x 32 thread; Observe specified tightening sequence! Starting with the rear right fastening screw, tighten 1-4 anti-clockwise. Tightening torque 20 (15 ftlb.) Nm
No. 4: Threaded connection securing steering column to frequency strut M8 x 115 thread; screw frequency strut to mounting bracket after screwing on steering column! Tightening torque 20 (15 ftlb.) Nm
No. 5: Threaded connection securing mount for sealing ring/sealing sleeve to firewall   Tightening torque 4 (3 ftlb.) Nm
No. 6: Threaded connection securing universal joint to steering gear M8 x 30 thread (only use screw once) Initial tightening 20 (15 ftlb.) Nm
No. 6: Threaded connection securing universal joint to steering gear M8 x 30 thread (only use screw once) Final tightening + 90°

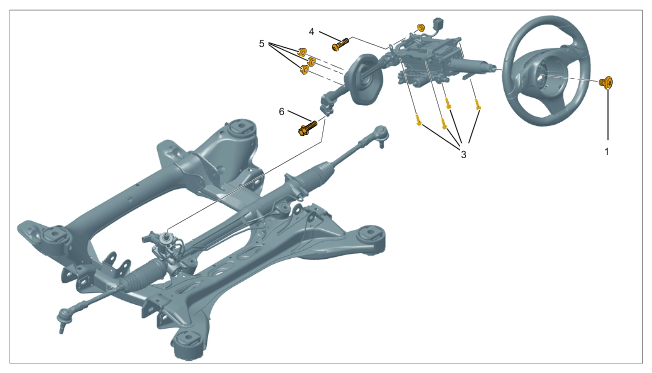

G16330878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
