Elv Control Unit On Steering Column

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TIGHTENING TORQUE SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance
ELV control unit to steering column	Screw/Item 1	Tightening torque	3.6 (2.6 ftlb.) Nm	+/- 0.5 (0.35 ftlb.) Nm

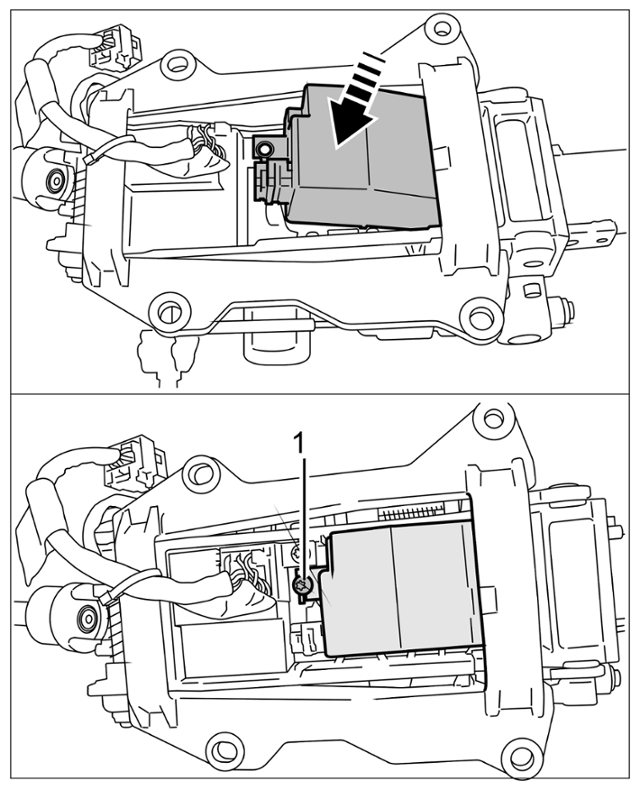

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing ELV control unit
